Turning an old tennis court into a skate park is a clever way to revive wasted space and give folks a place to hang out and have fun. With some planning, a close look at the surface, and the right features, we can turn cracked asphalt into a smooth spot for skating. Rallying a few friends or neighbors, this type of project can really pull a community together and offer skaters a safe place to ride.
We need to keep safety top of mind, pick ramps and rails that fit, and pay attention to the rules. Honestly, a bit of fresh paint and a bench or two can make a big difference. It’s not rocket science, but it does take a bit of effort.
Key Takeaways
- Assess and plan carefully for a safe, usable park.
- Community ideas and smart design make the park better.
- Regular maintenance keeps the area fun and safe.

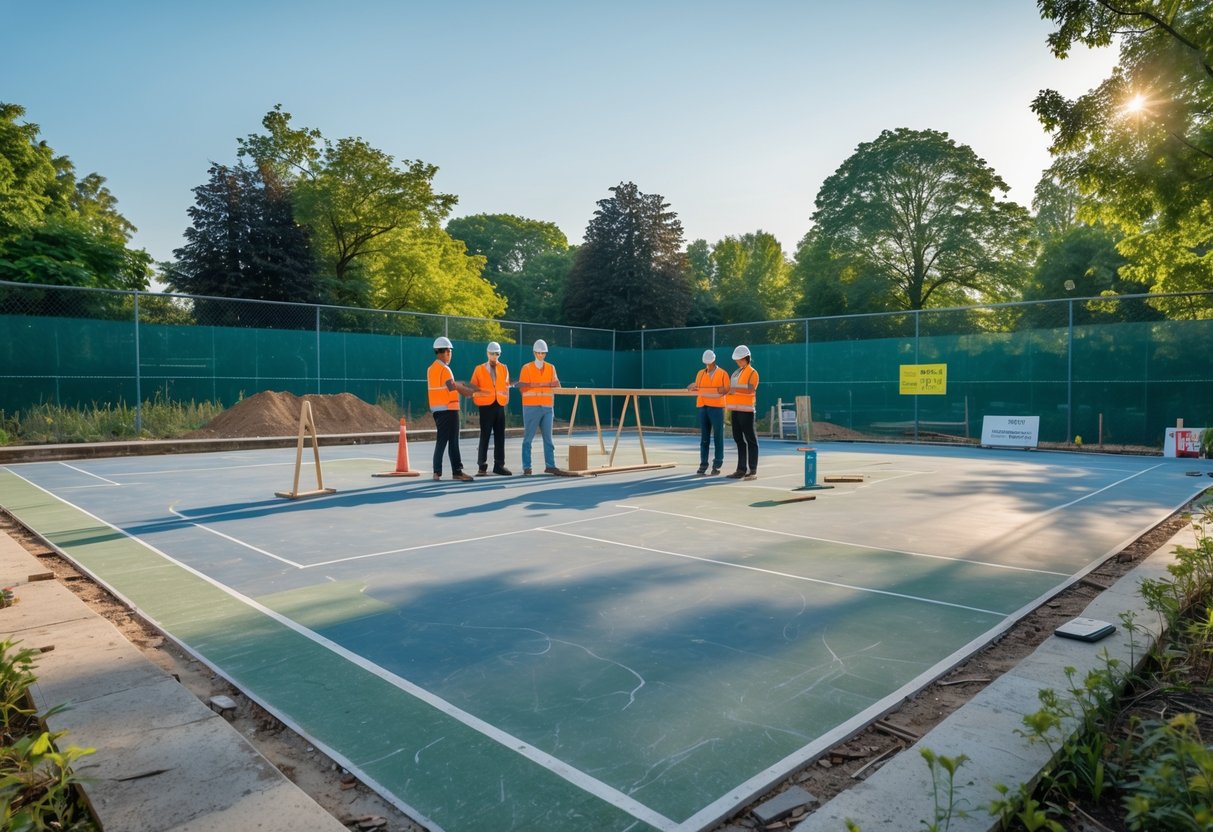

Assessing the Existing Tennis Court
Before we start, we’ve got to know what we’re dealing with. Let’s check how smooth the court is, look for damage, and see if there’s enough space for what we want to build.
Evaluating Court Surface Condition
First up: the court’s surface. Scan for big cracks, deep holes, or loose bits of asphalt. If you spot potholes, rough patches, or weeds poking through, jot those down—they’ll need patching before anything else.
A smooth surface is safer and just makes life easier. Try running your hand over the court or bounce a ball—if it goes off in a weird direction, you might have uneven spots.
Write down the trouble areas and give them a rating. For example:
| Area | Issue Type | Severity (Low/Med/High) |
|---|---|---|
| Center Court | Cracks | Medium |
| Near Net Post | Pothole | High |
| Baseline Edge | Weeds/Roots | Low |
Deal with the surface now and you’ll thank yourself when it’s time to add ramps.
Identifying Structural Issues
Take a look for bigger problems that could mess with safety. Check the fences—are they rusted, broken, or leaning? Bent gates or wobbly posts might need fixing before anyone skates.
Walk around and feel the ground. If the asphalt sinks or feels soft, you could have water damage or erosion, which is a pain for heavy skate features.
Make notes if you see things like:
- Water pooling after rain
- Sinking or soft spots
- Crumbling edges or walls
If you’re unsure, maybe ask a local contractor or builder for advice.
Measuring Dimensions for Skate Features
Time to grab a tape measure. Most tennis courts are about 78 feet long and 36 feet wide for doubles, but it’s worth checking yourself.
Think about where you’ll put ramps, rails, or maybe a mini halfpipe. Mark the spots with chalk or tape. You want enough space to skate safely and run up to each feature.
Here’s a quick guide for popular features:
| Feature | Minimum Space Needed |
|---|---|
| Quarter Pipe | 8’ x 4’ |
| Grind Rail | 12’ x 3’ |
| Flat Bank | 10’ x 6’ |
Leave extra room at the edges for turning and resting. Good measuring now means fewer headaches later.
Planning the Skate Park Layout
To turn a tennis court into a solid skate spot, we need a plan that keeps skating safe, fun, and open to everyone. We have to think about how people move, what obstacles to choose, and making sure skaters of all levels feel at home.
Designing Flow and Traffic Patterns
A good skate park flows—nobody wants to crash into someone else or get stuck. Sketch out main lines (routes skaters can take to link up features and keep moving).
Don’t cram obstacles together. Leave space so people don’t pile up or collide. Drawing a rough plan on paper can help you see how skaters will move.
Set up clear entry and exit spots. Painted arrows or simple signs can help, especially when things get busy. Keeping a clear path along the edge means people can walk without dodging boards.
Selecting Skate Elements and Obstacles
The ramps, rails, and ledges you pick will shape how the park feels. Since you’re working with a tennis court, go for features that fit and don’t crowd the space.
Here’s a basic setup to consider:
| Element | Size suggestion | Purpose |
|---|---|---|
| Mini ramp | 3-4 feet high | Beginner to intermediate |
| Flat rail | 10-12 feet long | Balance and grinds |
| Manual pad | 8x3 feet, 6-12" high | Tricks with low risk |
| Quarter pipe | 3 feet high | Transitions, changing speed |
| Pyramid/kicker | 2-3 feet high | Launches and learning airs |
Portable or modular ramps let you experiment before locking anything down.
Ensuring Accessibility for All Skill Levels
We want new skaters and veterans to share the park. That means mixing easy and tough features.
Set aside space for beginners to practice basics—mark it with paint or a sign. For the more advanced, add higher ledges or bigger ramps, but try to keep them a little separate so nobody feels in the way.
A couple of benches or some shade nearby never hurts. Make sure there’s an easy way in and out for everyone, including wheelchair users or little kids.
Safety and Compliance Considerations
We want skaters to stay safe and out of trouble with the rules. That means checking local laws, posting clear signs, and having decent lighting for evenings.
Meeting Local Ordinances and Regulations
Check city and county rules before you start. Some places need permits for ramps or major changes. Noise rules might set hours, and zoning can affect what you’re allowed to build.
A quick trip to the city planning office or browsing their website can save you a lot of hassle. Here’s a basic checklist:
- Permits needed
- Allowed skate park features
- Noise and hours rules
- Liability and insurance
Talk to local officials early, trust me. Some cities want a safety inspection before you open up.
Incorporating Proper Signage
Clear signs are a must. They help everyone know the rules and where things are. That keeps folks safe and reminds skaters what’s expected. Stuff like safety gear reminders, park hours, and emergency numbers should be easy to find.
Weatherproof signs at every entrance and key spots work best. Some ideas:
| Sign Type | Purpose |
|---|---|
| Safety gear reminder | Encourage helmet and pads |
| Park hours | Let skaters know when it's open |
| Emergency numbers | Quick help if needed |
| Rules list | Lay out ‘dos’ and ‘don’ts’ |
Skip the tiny print—keep it simple so everyone gets it.
Lighting and Visibility for Night Use
Skating after dark is pretty common. Good lighting matters. You want even, bright lights across the whole area, not just one corner. LED floodlights save energy and work with timers, so they don’t run all night for no reason.
Lights shouldn’t blind skaters. Use tall poles to keep them out of your line of sight while still lighting everything. Ask yourself:
- Can you see all the walkways and obstacles?
- Does every section get enough light?
- Are the switches safe from tampering?
With decent lighting, everyone can skate safely, even at night.

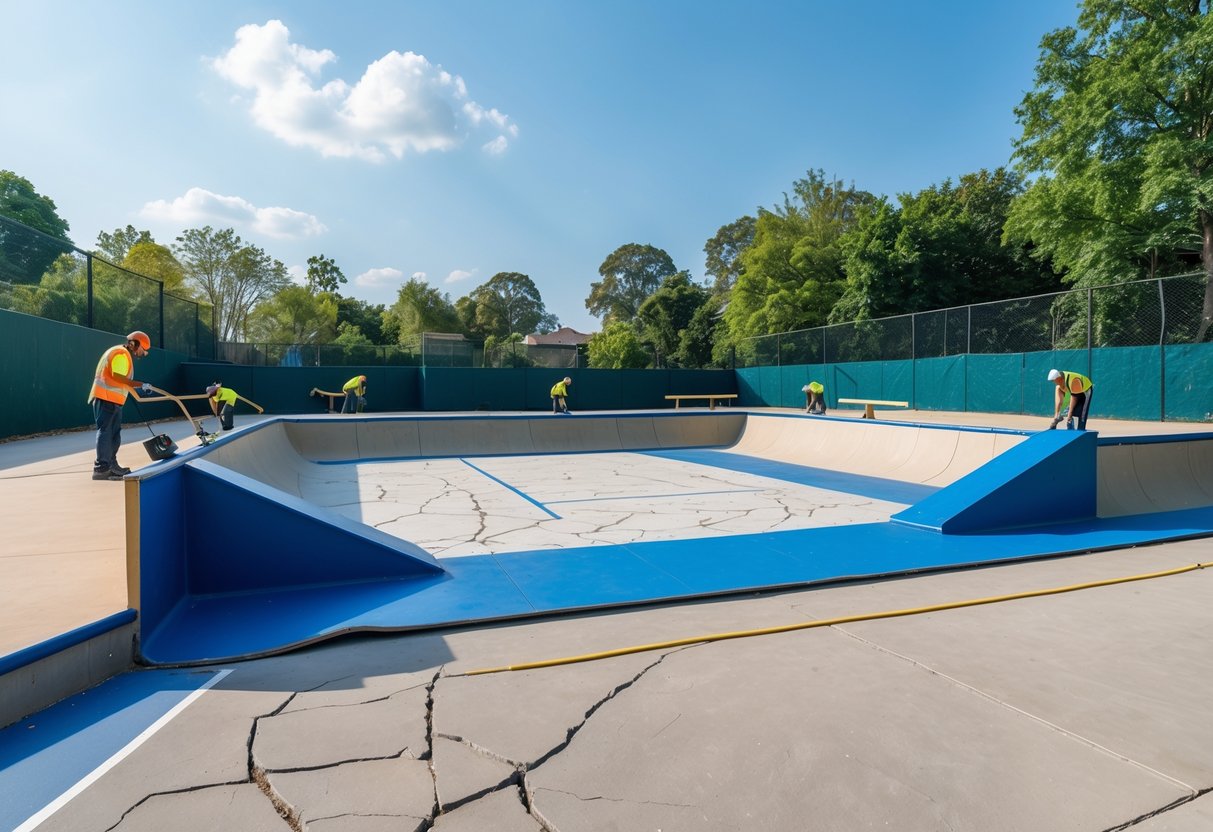

Preparing the Court Surface
Before building, we need to make sure the court is clean and smooth enough to skate on.
Cleaning and Repairing Cracks
Start by sweeping away leaves, dust, and loose junk. If you’ve got a pressure washer, use it—if not, a broom and soapy water will do.
Look for cracks and holes. Fill small cracks with acrylic crack filler. For bigger holes or rough patches, use a patching compound made for courts.
Checklist time:
- Sweep and clean
- Inspect for cracks and holes
- Fill thin cracks
- Patch bigger damage
Scrub away any mold or moss—slippery spots are a no-go.

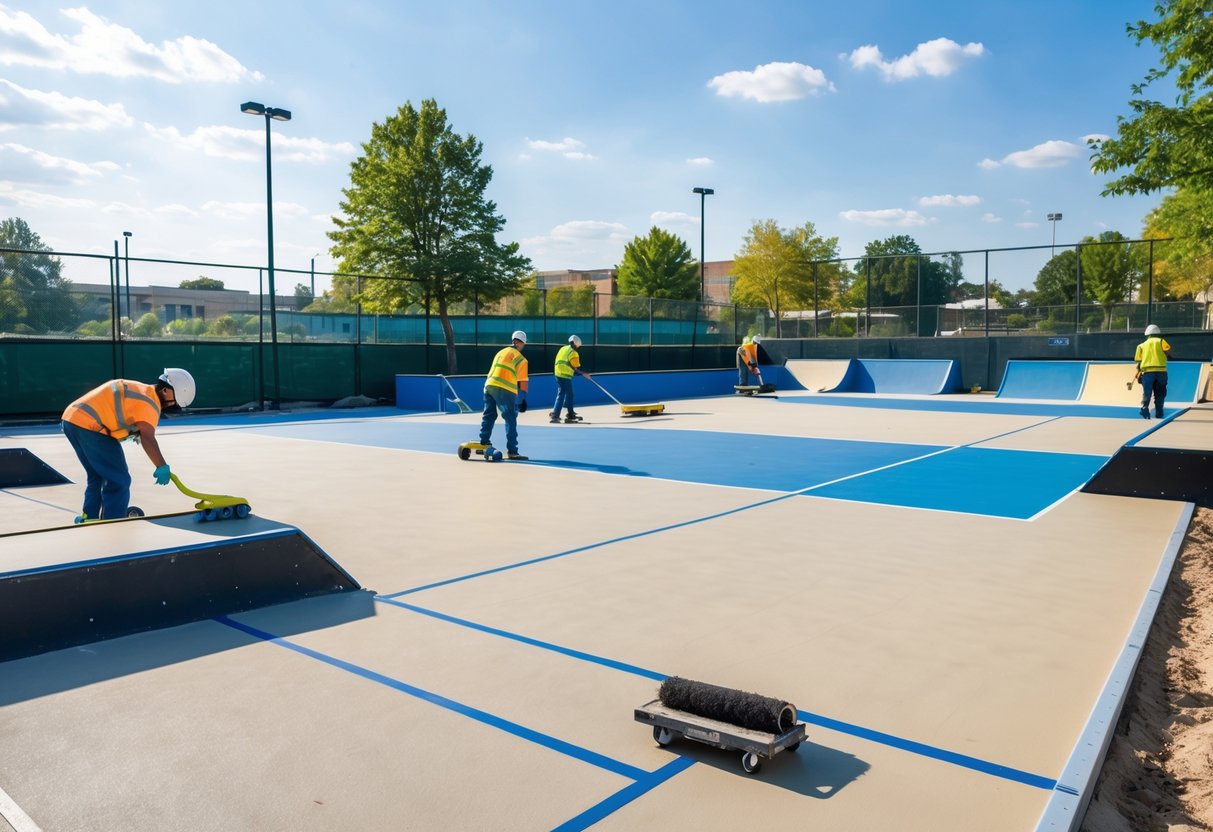

Surface Resurfacing Techniques
Once the court’s clean and patched, pick a resurfacing method. Laying down a fresh acrylic layer usually does the trick for old tennis courts.
If the court’s really beat up, start with a primer. Then use a squeegee to spread a base coat. This fills in small spots you might have missed.
Adding a bit of non-slip grit to the top layer gives wheels more grip and helps if things get a little wet.
Here’s the basic process:
| Step | What We Use | Why It Matters |
|---|---|---|
| Primer | Court primer | Helps layers stick |
| Base Coat | Acrylic resurfacer | Smooths it all out |
| Grit | Silica sand or texture | Stops slipping |
Let it dry and you’re ready for ramps, rails, and whatever else you’ve got planned.

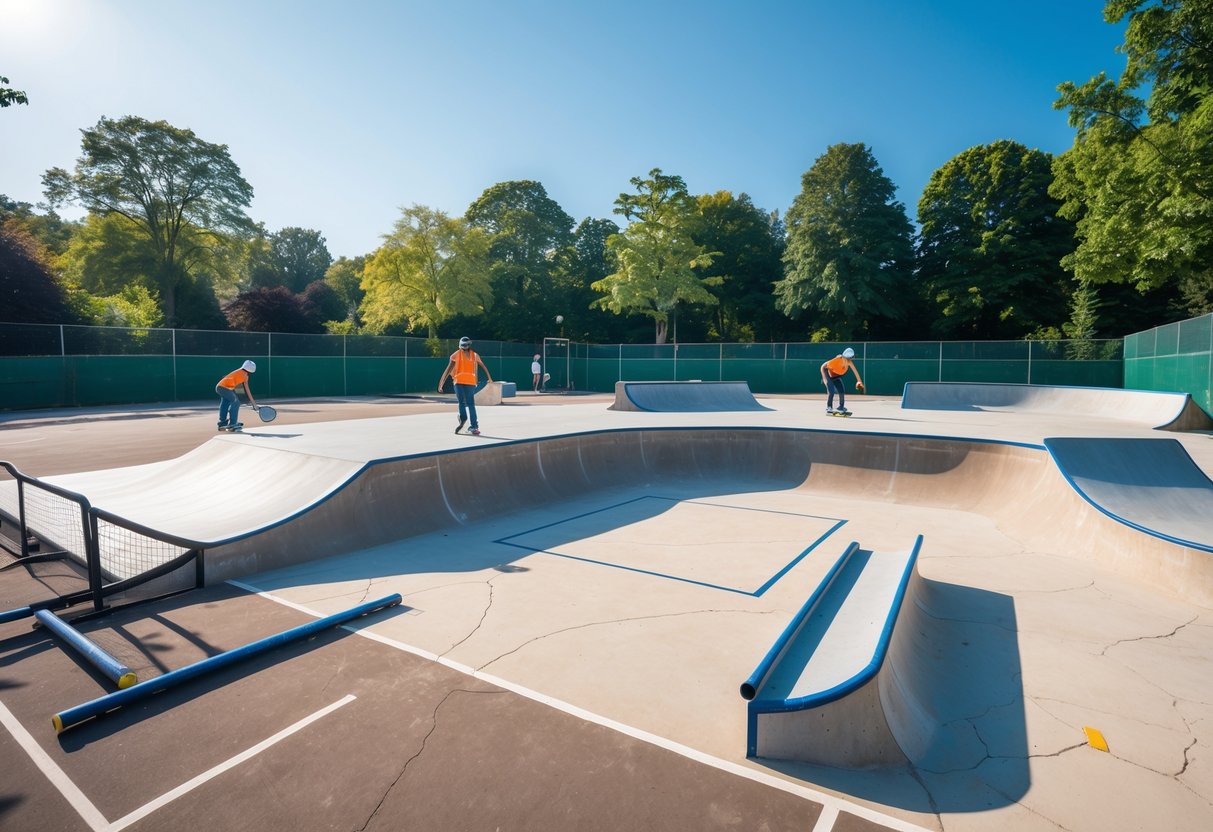

Building Skate Features
Building ramps and rails means picking the right materials, locking everything down, and making sure it’s safe to ride. We want features that last and are fun for everyone.
Materials for Ramps and Rails
Go for strong, weather-resistant stuff. For ramps, pressure-treated plywood works for the base, and Skatelite or Masonite makes a nice, grippy top. These surfaces handle rain and sun pretty well.
For rails and coping, galvanized steel pipes are solid—they don’t rust fast and feel good to grind. Here’s a quick breakdown:
| Feature | Base Material | Surface/Finish |
|---|---|---|
| Ramps | Pressure-treated wood | Skatelite Sheet |
| Rails/Coping | Steel pipe | Galvanized/paint |
| Ledges/Boxes | Concrete/wood | Angle iron edge |
Stay away from untreated wood or soft metals—they just don’t hold up.
Installation of Obstacles
How you install stuff matters as much as what you build. Bolt down ramps and rails with strong anchors so nothing shifts. For bigger stuff like quarter pipes, concrete footings work best.
Leave enough space between features so skaters can roll safely and line up for tricks. Here’s a quick list:
- Check for loose screws or sharp edges
- Test each obstacle before letting people skate it
- Paint the ground under rails or ledges to highlight them
A good install keeps things safe and makes your park last.
Creating Safe Transitions
Transitions link flat spots to ramps and other features. Templates help us cut curves that feel right under a board—no weird angles or jolts. We want every transition to ride smooth, so we check for bumps or gaps and fix them before moving on.
We seal joints with exterior screws and fill seams with weatherproof caulk. Metal coping on ramp edges keeps boards from snagging and gives everything a more finished, pro vibe.
If we see a rough spot, we’ll sand it or slap down another layer of surface material. Every transition is a chance to keep falls low and fun high for everyone.

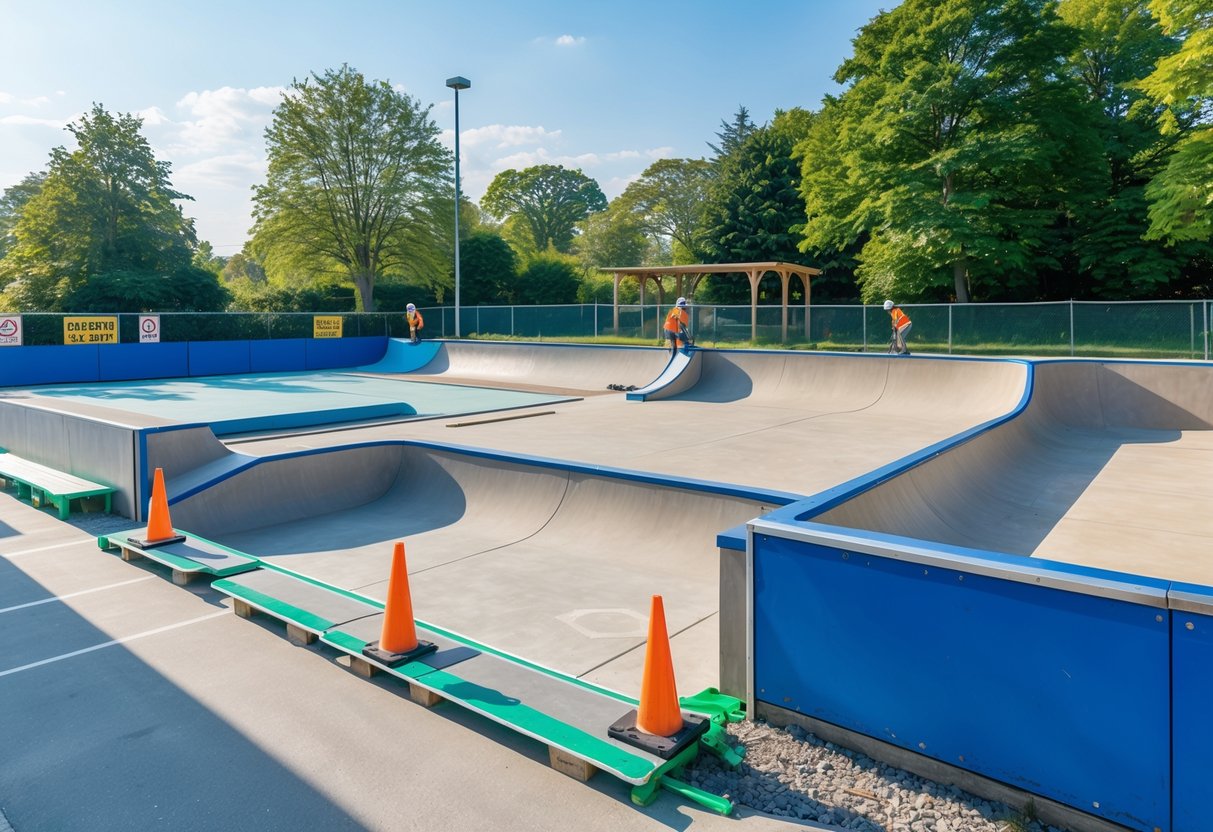

Safety Enhancements for Skaters
Keeping the park safe takes some creativity and a bit of common sense. Barriers and padding in the right places can make a huge difference, whether you’re just starting out or already landing tricks.
Adding Protective Barriers
Nobody wants to roll off the edge by accident, so strong barriers are a must. Sturdy fences or rails around the court keep everyone inside the skate zone. Chain-link fences work well—they’re tough, and you can still see through them.
Barriers should be at least four feet high to stop boards and riders from flying off the court. In corners or near drop-offs, extra padding—pool noodles or foam covers—softens any crashes.
We’ll need gates or entry points too. They should swing open wide enough for skaters, bikes, and maintenance gear. Signs on the barriers help with rules and remind everyone where to exit safely.
Fall Zones and Cushioning
Falling happens, but landing on concrete stings. We can create “fall zones” by putting padded mats or rubber surfacing in spots where people usually wipe out—near ramps or ledges, mostly.
For soft zones, impact-absorbing materials like playground tiles or recycled rubber mats really help. The thickest pads should go where beginners spend the most time.
These cushioned zones need to stay clean and in good shape. Loose or damaged mats can be dangerous, so we’ll check them weekly and swap out anything worn.
Landscaping and Park Amenities
Turning a tennis court into a skate park isn’t just about ramps and rails. We want people to hang out, relax, and enjoy being outside, too.
Shade Structures and Seating
Skating gets hot, especially in summer. Shade structures make a big difference. We can set up metal or fabric canopies, or plant a few big trees along the fence for natural shade. Benches with backrests under the shade let families and friends chill out while watching the action.
Seating is important for skaters and visitors. Concrete benches last forever, and portable picnic tables work for groups or snack breaks. We’ll space seats along the edges so the center stays open for skating but there’s still somewhere to rest.
Bike Racks and Water Fountains
Lots of folks bike to the park, so bike racks near the entrance are a must. A simple loop or U-shaped rack does the trick and keeps bikes safe. If they’re in clear view, there’s less risk of theft. Maybe we add a fix-it station with a pump and basic tools for quick repairs.
Skaters need water—no way around it. A water fountain in the park saves everyone a trip. A bottle filler is even better for quick refills. If we can, let’s put fountains by the seating so nobody has to wander far for a drink.
Community Involvement in the Project
Turning an old tennis court into a skate park isn’t a solo job. We need the whole neighborhood—input, fundraising, and some good old-fashioned teamwork.
Engaging Local Skaters
Local skaters know what makes a park great. We can ask them for ideas on ramps, rails, and layouts. A survey or public meeting gets everyone’s voice in the mix and helps us dodge mistakes.
A small skater committee can help test ideas and review plans. Skaters want the park to be safe, fun, and work for all skill levels. Getting younger skaters involved means they’ll respect and take care of the place.
Letting skaters help shape the park means they’ll actually use it. Plus, we might avoid expensive changes later if we get their input early.
Fundraising and Sponsorship Ideas
Building a skate park isn’t cheap, so we’ll need to get creative. Events like bake sales, car washes, and community skate jams can raise some cash.
Local businesses might sponsor a ramp or donate materials. Here are some places to ask:
- Sporting goods stores
- Construction companies
- Neighborhood restaurants
- Skateboard brands
A donation wall at the park—painted bricks or boards with donor names—shows our thanks. An online fundraising page helps reach more people. Even small donations add up fast.

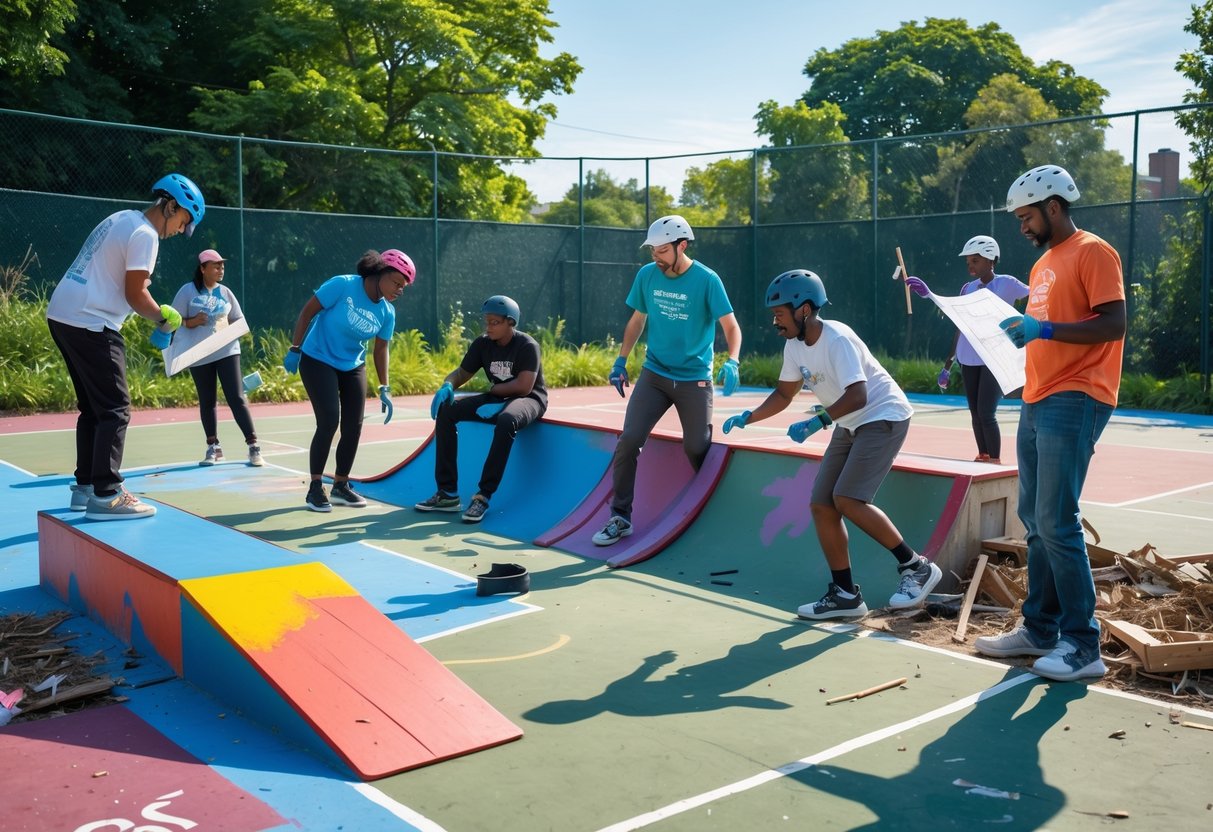

Organizing Volunteer Build Days
To save money and build community, we should organize volunteer build days. Weekends work best so more folks can join in. Clear instructions and job assignments keep things moving.
Volunteers can:
- Paint lines or murals
- Set up ramps and rails
- Clean up debris and trash
Ask people to bring tools, gloves, and snacks. Safety is important—give everyone some tips and gear before starting. Volunteering is a great way to meet neighbors, learn a few skills, and take pride in what we create together.
Maintenance and Long-Term Upkeep
If we want our skate park to stay fun and safe, we’ll need to keep up with maintenance. A little effort goes a long way—gear lasts longer, and every session is better.
Routine Inspections
We should walk the park every week, checking ramps, rails, and ledges for cracks, sharp edges, or wobbly parts. Listening for squeaks or feeling for loose bolts helps us spot trouble before it gets worse. If paint peels or puddles form, moisture’s sneaking in—never good.
It helps to keep an inspection checklist handy. Here’s a sample:
| Area | What to Check For | How Often |
|---|---|---|
| Ramps | Cracks, warping | Weekly |
| Rails | Rust, stability | Weekly |
| Surface | Chips, moss, puddles | After rain |
| Fence/Gates | Secure latches, holes | Monthly |
We can take turns doing these checks. If we find problems, mark them with cones or tape to warn skaters.
Quick Repairs for Skate Features
Small problems become big ones fast at a skate park. If we see a loose screw, cracked surface, or worn grind rail, fixing it right away saves time and keeps people safe.
We should keep a repair kit handy—extra screws, bolts, weather-resistant tape, sandpaper, and paint. For wooden ramps, quick sanding and a coat of sealant help prevent splinters. With metal, tightening bolts and checking welds every month keeps things sturdy.
Some repairs need pros, like welding or resurfacing. It’s good to have a list of local shops or volunteers who can help. Tackling small fixes quickly keeps the park rolling smoothly.
Keeping the Park Clean
A clean park is safer and just feels better. Trash cans at entrances and near benches help, as long as we empty them every week. Otherwise, trash just blows onto the ramps.
Leaves, dirt, and sticks make surfaces slick. After windy days or storms, sweeping everything clear helps prevent falls. Here’s a basic cleaning plan:
- Sweep ramps and flat areas weekly
- Pick up litter and empty bins on Saturdays
- Spray off mud and cover graffiti ASAP
Signs thanking visitors for cleaning up go a long way. We can even make cleanup days a group event—snacks always help.
Frequently Asked Questions
Before we dive in, let’s talk through some basics—safety, costs, design, rules, other uses, and how much DIY is realistic. These common questions can guide us as we bring new life to an unused tennis court.
What are the critical safety features to include when transforming a tennis court into a skate park?
We need smooth, level surfaces—no cracks or holes. Every ramp should have solid edges and nothing loose.
Fencing keeps skaters in and stray balls out. Good lighting and clear sightlines matter, especially if we skate at night.
Can you give me a ballpark figure for the renovation costs from tennis court to skate haven?
If we stick with pre-made ramps and rails, it might cost $10,000 to $30,000. Custom or pro-level builds can go past $60,000.
Prices jump around depending on materials, park size, and how much we do ourselves.
Got any creative layout tips for maximizing an old tennis court's space as a skate park?
Tennis courts are long and narrow, so it’s smart to line features along the edges and leave the middle open for speed.
Mixing up obstacles keeps things interesting. Add banks, grind rails, and a beginner corner. Movable pieces let us change things up when we want.
How do I ensure my skate park makeover meets the official skate park dimensions?
Most public parks follow ASTM or local standards for ramp sizes, distances, and safety zones. We can check with city planners or skate park designers for the details.
It’s worth measuring everything twice before building—makes life easier if we want to open the space to the public someday.
What fun alternative uses are there for a repurposed tennis court, besides a skate park?
We could turn the court into pickleball, futsal, or a basketball court. Some people add mini-golf or outdoor fitness stations.
It’s also a great spot for roller hockey, scooters, or even chalk art events. Why not?
Is it possible to DIY the skate park conversion, or should I call in the pros?
You can totally tackle smaller stuff—like a quarter pipe or a grind rail—if you've got some basic tools and don't mind getting your hands dirty. Just be careful and know your limits. But when it comes to bigger projects, especially anything with concrete, things get tricky fast.
Pros have a handle on things like drainage, safety codes, and building ramps that won't fall apart after a season. If you're thinking about going all out, honestly, it's probably worth bringing in someone who does this for a living.
