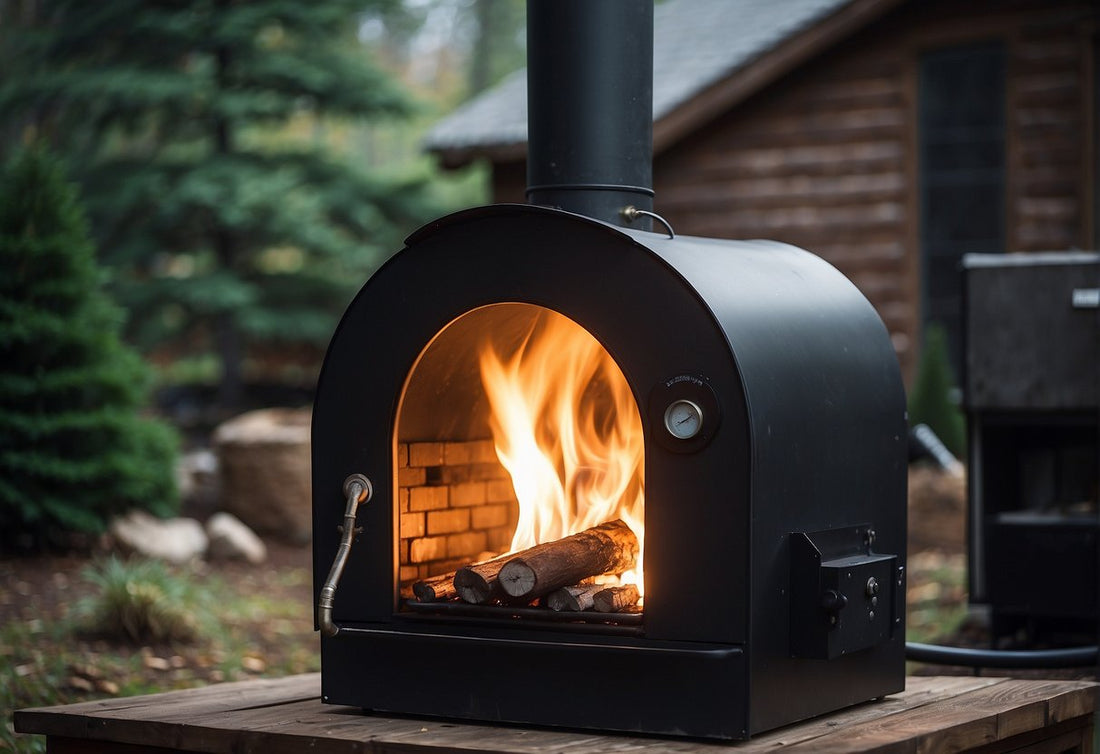

Overview of Outdoor Wood Furnaces

Outdoor wood furnaces, often referred to as outdoor wood boilers or hydronic heaters, are freestanding units that provide heat through burning wood. They are typically located outside, at a distance from the building they heat.

Components:

• Firebox: Where you load the wood and combustion occurs.
• Water Jacket: Surrounds the firebox; water inside it gets heated.
• Heat Exchanger: Transfers heat to your home.
• Chimney: Expels exhaust gases.

Working Principle:

You load wood into the firebox, which heats the water in the surrounding water jacket. This hot water is then pumped through an underground pipe to your home's heat exchanger, which warms the indoor air. The cooled water cycles back to the furnace to be reheated.

Advantages:

• Energy Independence: By using wood, you reduce reliance on fossil fuels.
• Cost-Effective: Wood can be a cheaper fuel source, especially if you have access to a wood supply.

Considerations:

• Regular maintenance is needed to ensure efficiency.
• You need space to store wood and the furnace itself.
• Compliance with local regulations on smoke emissions is necessary.

Outdoor wood furnaces are a robust alternative heating solution that can be both economical and enhance energy independence. However, they demand an investment in time and resources to manage and maintain.

Design and Components

Outdoor wood furnaces are specifically designed to provide efficient heating. The primary components include a large firebox, a water jacket surrounding the firebox, ample insulation, an effective heat exchanger, and a chimney for exhaust.

Firebox

The Firebox is where you burn the wood. It is crafted from robust, heat-tolerant metals such as stainless steel and is designed to handle high temperatures. Adequate size allows for more fuel and longer burn times.

Water Jacket

Surrounding the firebox is the Water Jacket. This component consists of a layer of water that absorbs the heat from the fire. The heated water then circulates through your heating system to provide warmth.

Insulation

High-quality Insulation is crucial to retain heat. It surrounds the water jacket, ensuring that heat loss is minimal and that the unit operates efficiently. This insulation is often a combination of air space and insulating materials.

Heat Exchanger

The Heat Exchanger facilitates the transfer of heat from the outdoor furnace to your home’s heating system. Its design maximizes surface area to improve heat transfer rates.

Chimney

Lastly, the Chimney expels the exhaust gases. A well-designed chimney is crucial for maintaining a proper draft, which is key to efficient combustion and heat production.

Operating Principles

In outdoor wood furnaces, the operating principles revolve around efficiently burning fuel to produce heat, which is then transferred and circulated to provide warmth.

Fuel Combustion

Your outdoor wood furnace's efficiency starts with proper fuel combustion. Wood, as the primary fuel source, is burned in a firebox. The design of the firebox is crucial as it needs sufficient air flow to ensure complete combustion, which maximizes heat output and minimizes waste. A draft fan may be utilized to control air flow, aiding in maintaining an optimal temperature for combustion.

Heat Transfer

Once the wood is combusted, the generated heat needs to be transferred effectively. This is achieved through a heat exchanger, typically made of durable metal that can withstand high temperatures. The heat from the burning wood radiates to the sides of the furnace where the exchanger is located. It is important that your heat exchanger has a large surface area to transfer as much heat as possible to the circulating water that surrounds it.

Water Circulation

The heat captured by the exchanger is transferred to water that circulates within a closed loop system. The heated water travels from your outdoor wood furnace through insulated underground pipes to your home. Inside, this water can be routed to radiators, hydronic underfloor heating systems, or coils in your air handling unit for space heating. The now-cooled water returns to the furnace to be reheated, creating a continuous flow of warmth. This water circulation is typically propelled by an electric pump ensuring constant movement and even heat distribution throughout your home.

Installation Requirements

Before installing an outdoor wood furnace, you should be aware of the three main areas to address: adherence to local regulations, correct placement with necessary clearances, and the establishment of a proper foundation and support system.

Local Regulations

Your first step is to check the local building codes and environmental regulations. These may include:

• Permits: Secure any necessary permits before installation begins.
• Emissions Standards: Make sure your furnace meets local emissions standards to reduce pollution.

Placement and Clearances

Placement of your wood furnace is critical for safety and efficiency. Ensure that:

• Distance from Buildings: There’s a minimum distance from your home or any other buildings, typically at least 30 feet.
• Clearance Around the Furnace: Maintain at least a few feet of clearance around the furnace to prevent fire hazards.

Foundation and Support

Your outdoor wood furnace needs a stable, non-combustible base. Here's how you can achieve this:

• Concrete Pad: Construct a level concrete pad that’s slightly larger than the footprint of the furnace.
• Blocking: If concrete is not an option, use patio blocks or solid cinder blocks that can support the weight.

Performance and Efficiency

Outdoor wood furnaces are designed to provide a consistent and reliable source of heat by efficiently burning wood fuel. The nuances of their performance are best understood by examining burn efficiency, heat output, and the rate of fuel consumption.

Burn Efficiency

Your outdoor wood furnace achieves optimal burn efficiency through a process called gasification, which burns wood at high temperatures, reducing waste and emissions. It's not uncommon for modern units to have efficiency ratings that exceed 75%, which indicates that a large proportion of the wood's energy is converted into usable heat.

Heat Output

The heat output of your furnace is measured in British Thermal Units (BTUs). A well-sized and efficient outdoor wood furnace can produce anywhere from 100,000 to 500,000 BTUs per hour, depending on the model. This reflects the furnace's capacity to heat a given space, with larger units being able to warm more square footage.

Fuel Consumption

Your wood furnace's fuel consumption depends on its efficiency and the heat output required. On average, you might expect to burn approximately:

• 1 cord for 1,000 sq. ft. of space for a season in a highly efficient model.
• 2-5 cords for larger spaces or less efficient models.

Keep in mind, these figures can be influenced by climate, insulation of the space, and wood type.

Environmental Considerations

When operating an outdoor wood furnace, you need to be aware of the potential environmental impact. This includes the types of emissions produced and the sustainability of the fuel resources you use.

Emissions

Particulate Matter (PM): Your wood furnace emits particulate matter which can affect air quality. The size and concentration of these particles can vary, but they generally include a mix of small particles and liquid droplets.

• Carbon Monoxide (CO): Incomplete combustion in your furnace can lead to the emission of carbon monoxide, a colorless and odorless gas that can be harmful if inhaled.

• Volatile Organic Compounds (VOCs): Burning wood releases VOCs, which can contribute to the formation of ground-level ozone and secondary airborne particulates.

Nitrogen Oxides (NOx): Your furnace also emits nitrogen oxides which can contribute to smog and respiratory problems.

Sustainable Fuel Resources

• Sourcing: Ensure your wood comes from sustainably managed forests to minimize environmental impact.

  Criteria	Description
  Certification	Look for wood that is certified by recognized organizations such as FSC or SFI.
  Locality	Use local wood to reduce transport emissions and support local ecosystems.
  Regrowth	Select wood from forests with effective regrowth plans to maintain forest health and biodiversity.

Wood Type: Hardwoods generally burn longer and more efficiently than softwoods, reducing the frequency of refueling and the total emissions produced.

Maintenance and Upkeep

Proper maintenance ensures the longevity and efficiency of your outdoor wood furnace. This involves routine actions such as cleaning, ash removal, and inspections.

Cleaning

Your furnace's efficiency is directly tied to its cleanliness. Every six months, remove soot and creosote from the chimney and heat exchange tubes. Use a chimney brush for the chimney and a smaller brush for the tubes.

Ash Removal

Ashes should be cleared once they accumulate to about one inch in the firebox. Always ensure the fire is completely out before removal. Dispose of ashes in a metal container with a lid to prevent any potential fire hazard.

Regular Inspections

Conduct inspections of all components every year before heating season. Check for any signs of wear, rust, or damage. Replace seals and gaskets as needed to maintain a tight seal. Remember, issues caught early are easier to manage.

Safety Measures

Operating an outdoor wood furnace requires adherence to safety measures that ensure its proper functioning and prevent accidents. It is essential to understand these precautions well to protect yourself and your property.

Overheating Prevention

Your outdoor wood furnace comes equipped with a thermostat that monitors the temperature. This feature is designed to automatically regulate the burn rate of wood, preventing overheating. Periodic checks of the thermostat are crucial to ensure it is functioning correctly.

Pressure Relief

Pressure buildup within the furnace system can be dangerous. Every unit is fitted with a pressure relief valve, which opens to release excess pressure, therefore averting potential hazards. It is vital to periodically inspect and test this valve to ensure it responds appropriately under pressure conditions.

Fire Safety Protocols

To maintain fire safety, you should establish a clear zone around the furnace, free from flammable materials. A radius of at least 10 feet is recommended. Routine checks of the integrity of the furnace's structures, such as the firebox and door seals, help prevent unintended fire outbreaks. Additionally, keep a fire extinguisher accessible for emergencies.

Advantages and Disadvantages

Outdoor wood furnaces offer a unique heating solution, but they come with their own set of benefits and downsides. It's important for you to weigh these carefully before making a decision.

Cost-Benefit Analysis

Outdoor wood furnaces can be cost-effective in the long run, especially if you have access to affordable firewood.

• Initial Costs: High upfront investment for purchase and installation.
• Operational Costs: Potentially low if wood is cheap or free; however, prices may vary based on location and wood supply.

Longevity

The lifespan of an outdoor wood furnace is significant compared to other heating systems, which means you can expect years of service.

• Maintenance: Regular maintenance is needed, which can add to the long-term cost.
• Durability: Constructed to endure harsh weather conditions, they can last up to 20 years with proper care.

Compatibility with Existing Systems

Your existing HVAC system’s compatibility with an outdoor wood furnace is vital to consider for a smooth transition.

• Retrofitting: May be necessary to connect the furnace to your current system.
• Versatility: Usually compatible with most existing systems, but always verify with a professional.

Use Cases

Outdoor wood furnaces are versatile heating solutions that cater to different scales of heating requirements, from personal homes to larger commercial spaces.

Residential Applications

For your home heating needs, an outdoor wood furnace can provide a steady and reliable source of heat during colder months. It connects to your home's existing ductwork or hydronic systems to deliver warmth throughout your living spaces. Here's how it can benefit you:

• Cost-Effective: You can significantly reduce your heating bills by utilizing timber, a renewable resource, especially if you have access to an affordable wood supply.
• Environmentally Friendly: Modern units are designed to burn wood efficiently, reducing emissions and your carbon footprint.
• Safety: By locating the combustion process outside your home, you mitigate the risk of indoor fire hazards and improve indoor air quality.

Commercial Applications

Outdoor wood furnaces are also suitable for larger-scale heating requirements such as in commercial venues, including schools, warehouses, and greenhouses. They offer the following advantages:

• Scalability: Commercial models have larger capacities to heat multiple buildings or larger complexes.
• Operational Efficiency: These systems can be integrated with other heating systems to optimize energy use across expansive spaces.
• Uniform Heating: A well-designed system ensures even distribution of heat, which is crucial for commercial settings to maintain comfortable and consistent indoor temperatures.
