How To Safely Build And Install A Sturdy Outdoor Pull-Up Bar?

If you're looking for a reliable spot to crank out pull-ups and level up your backyard fitness game, building your own outdoor pull-up bar is a solid move. You can create a safe, sturdy outdoor pull-up bar by picking strong materials, measuring carefully, and setting a proper concrete foundation. With a little planning and some patience, this DIY project can actually be fun—and the end result is tough, safe, and ready for years of workouts.

Person installing a sturdy outdoor pull-up bar between wooden posts in a backyard.

You don’t need to be a master carpenter to pull this off. If you think about where to put it, grab some solid lumber or metal, and use the right tools, you’ll end up with a setup that doesn’t wobble or make you nervous every time you jump up. Ready to combine backyard fun with some serious strength training? For step-by-step tips and inspiration, check out this DIY backyard pull-up bar walkthrough.

Key Takeaways

  • Pick quality materials and a strong installation spot.
  • Make safety a top priority with good construction and checks.
  • Personalize your setup with accessories or a finish.

Choosing the Right Location

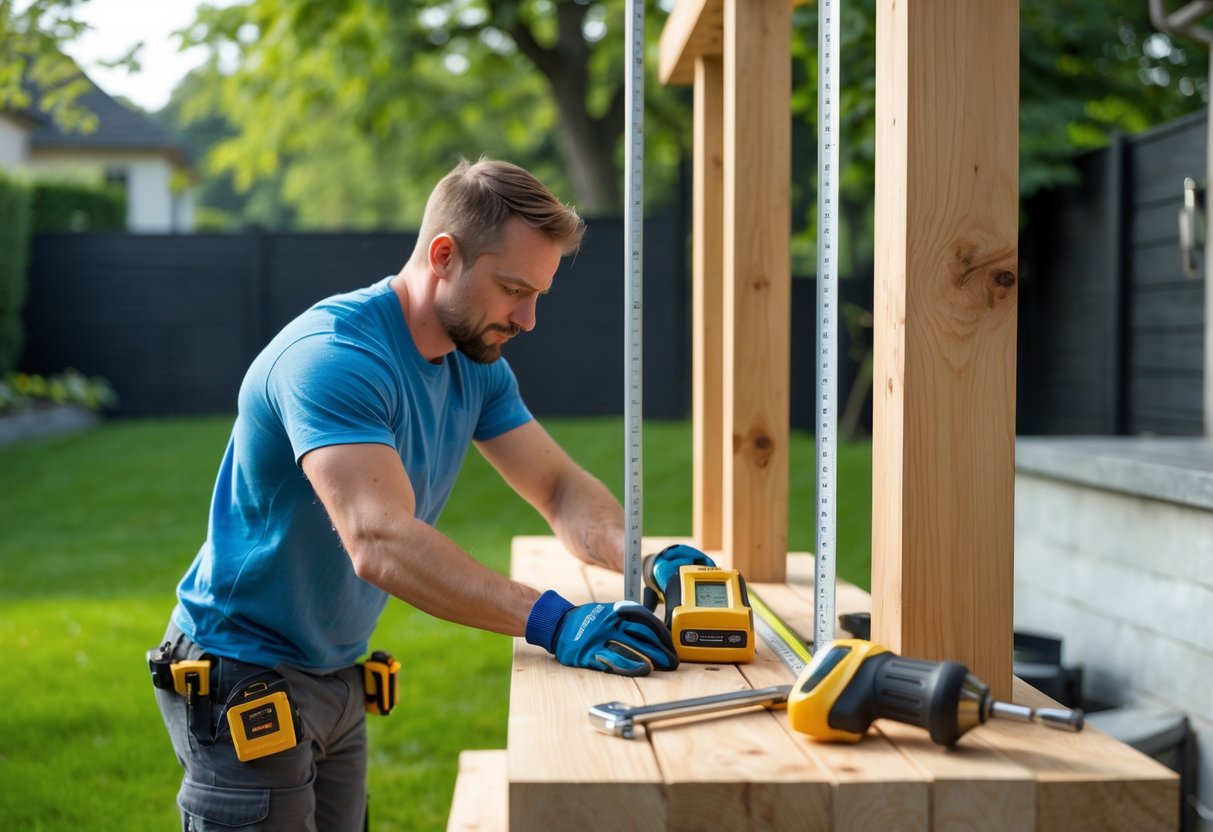

A man measuring space in a backyard to install a sturdy outdoor pull-up bar with tools nearby.

Choosing where to put your outdoor pull-up bar makes a huge difference for safety, comfort, and how long it lasts. You want enough space to move, no obvious hazards, and a base that stays solid for years.

Assessing Yard Space

Start by sizing up your yard. Don’t just shove the bar in a random corner. Here’s a quick checklist:

  • At least 3 feet of open space all around the bar
  • Room for both wide and narrow grips
  • Enough space to hop on and off without tripping
  • No low branches, wires, or garden lights in the way

A good spot makes you more likely to use the bar. Privacy and easy access help, but don’t put it smack in the middle of a busy path. If you’re planning a bigger setup, like a station with dip bars, map out the footprint before you start anything. For more advice, Garage Gym Experiment has some handy DIY outdoor pull-up bar location tips.

Sunlight and Weather Exposure

Now, think about the sun and weather. Metal bars can get blazing hot in summer and freezing in winter—ouch. If you can, aim for partial shade or throw up a tarp or canopy.

Weather matters for durability too. Too much rain or moisture leads to rust and rot, even with treated wood or coated metal. Don’t set up under trees that drip sap or drop junk. Use corrosion-resistant finishes, and maybe tuck the bar under an eave or tree for extra protection. The FitBeast Club guide points out that picking the right spot outside can save you a lot of maintenance headaches.

Ensuring Flat and Stable Ground

Don’t skip this part: the ground needs to be flat and stable. Uneven ground means wobbly posts and possible injuries.

Level grass, dirt, or compact gravel works well, but you can dig and flatten low spots if you need to. Avoid slopes or soggy ground that turns to mud. If you’re pouring concrete footings, make sure they sit flush and won’t budge. Rubber mats or pavers underfoot help with grip and cushion falls. A stable base means your bar lasts longer and you stay safer. For more setup details, check out this step-by-step outdoor pull-up bar guide.

Selecting Materials and Tools

Person outdoors assembling a sturdy pull-up bar using tools and materials on a wooden table in a backyard.

The right materials and tools make a world of difference for safety, longevity, and just plain enjoying your pull-up bar. If you want your setup to survive weather and hard workouts, every piece you pick matters.

Best Materials for Outdoor Durability

Outdoors, rust and rot are your biggest enemies. For the bar itself, galvanized steel pipe (ideally 1.25–1.5 inches in diameter) is a classic choice. It’s tough, resists rust, and feels good in your hands. Stainless steel is also great—just pricier. Don’t bother with untreated steel or flimsy bars; they’ll rust or bend in no time.

For posts, go with pressure-treated lumber at least 4x4 inches, or thick metal poles. Make sure the wood is rated for ground contact. If you use metal posts, get them galvanized or coated to avoid rust. Soft woods or untreated lumber just won’t last.

Here's a quick material cheat sheet:

Component Recommended Material Avoid
Pull-up Bar Galvanized/SS steel pipe PVC, untreated steel
Posts Pressure-treated wood, galvanized steel Untreated wood, thin metal
Concrete Base Exterior-grade concrete mix No base support

Required Tools for Construction

Having the right tools just makes everything easier (and safer). You’ll want a post hole digger or shovel for digging, a measuring tape and bubble level for lining things up, and a drill with bits for driving fasteners. Grab a socket wrench or adjustable spanner for tightening everything down.

If you’re using wood, a handsaw or circular saw will do the trick. For steel pipe, a pipe cutter is best. Mixing and pouring concrete? A wheelbarrow and shovel are your friends. And don’t forget work gloves and eye protection—you only get one set of hands and eyes.

Basic tools list:

  • Post hole digger or shovel
  • Tape measure and bubble level
  • Drill, drill bits, socket wrench/spanner
  • Pipe cutter or saw
  • Wheelbarrow and mixing tools
  • Safety gear (gloves, glasses)

Selecting Fixtures and Fasteners

Don’t cheap out on fasteners—they’re what hold your bar together. For the bar-to-post connection, heavy-duty galvanized flanges or U-bolts work well. For wood, go with galvanized lag bolts, carriage bolts, or exterior-grade screws. These resist rust and keep things tight.

If you’re attaching to metal, stainless or galvanized through-bolts and nuts are the way to go. Avoid regular indoor screws or zinc-plated stuff—they’ll rust out before you know it. For posts in the ground, use fast-setting exterior concrete and galvanized anchors for extra stability.

A few quick rules:

  • Always pick galvanized or stainless steel for outdoors
  • Use thick, heavy-gauge fasteners (at least 3/8")
  • Double-check sizes so nothing rattles or shifts

For more detail, check out the FitBeast pull-up bar build guide.

Planning Dimensions and Design

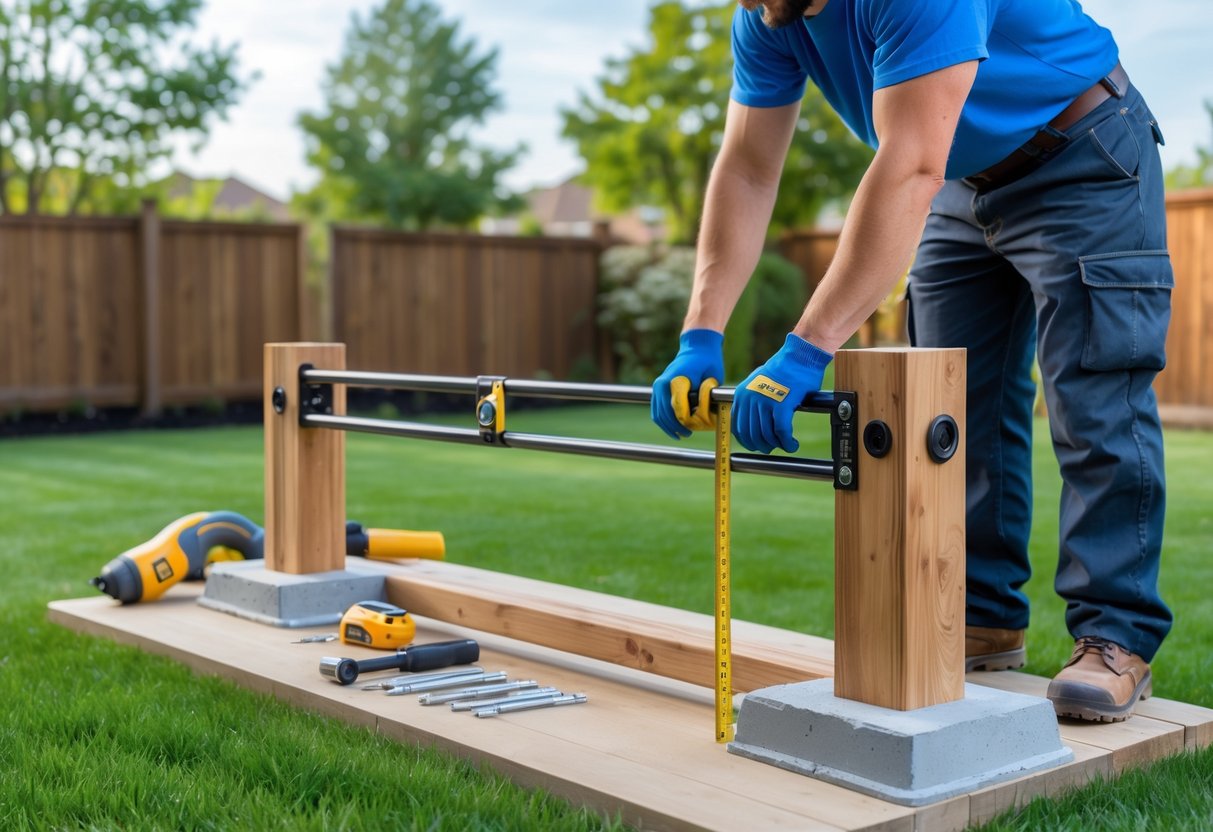

Person measuring and installing a sturdy outdoor pull-up bar between wooden posts in a backyard.

Before you start digging or mixing concrete, nail down the key measurements and design features. Careful planning makes the bar comfortable, safe, and ready for serious use.

Ideal Height and Width Guidelines

For most adults, set the top of the pull-up bar somewhere between 7 and 8 feet high. That gives you room to hang with straight arms and keeps your feet off the ground. Too low, and you’re forced to bend your knees. Too high, and getting up there can be a pain.

A width of about 4 to 5 feet between supports works well and matches most steel or galvanized pipes. Wider than that, and the bar might flex or just feel wobbly. Many plans use about 8 feet of upright post above ground, with 4 feet buried for stability—see this post on pole measurements for a handy reference.

If you’re building for kids or shorter folks, add a second, lower bar so everyone gets a shot.

Bar Diameter and Grip Options

Bar diameter matters a lot for your hands. A bar that’s 1 to 1.25 inches thick is comfortable for most people and doesn’t wreck your wrists.

If you’re using galvanized pipe, you can always wrap sections with athletic tape or foam grips for comfort and to fight slipping. Smooth pipes can get slick, while knurled or textured bars give more grip.

Don’t go too thick—it’ll tire your grip out fast. Too thin, and it’s rough on your fingers. Most commercial bars and DIY builds stick with that sweet spot.

Spacing for Multiple Users

If more than one person will use the bar at once, or you want to add extras like parallel bars, plan your spacing. Leave at least 24-30 inches clear on each side of the bar so you can move freely.

For multiple bars, stagger heights by at least a foot to avoid collisions. If you’re adding a second station, leave about 4 feet between bars so nobody’s bumping elbows.

A quick reference:

Number of Users Recommended Width (between bars) Height Difference
1 4-5 ft N/A
2 8-10 ft (2 stations) 12+ in

Giving yourself room keeps things safe and lets you mix up your workouts.

Preparing the Build Site

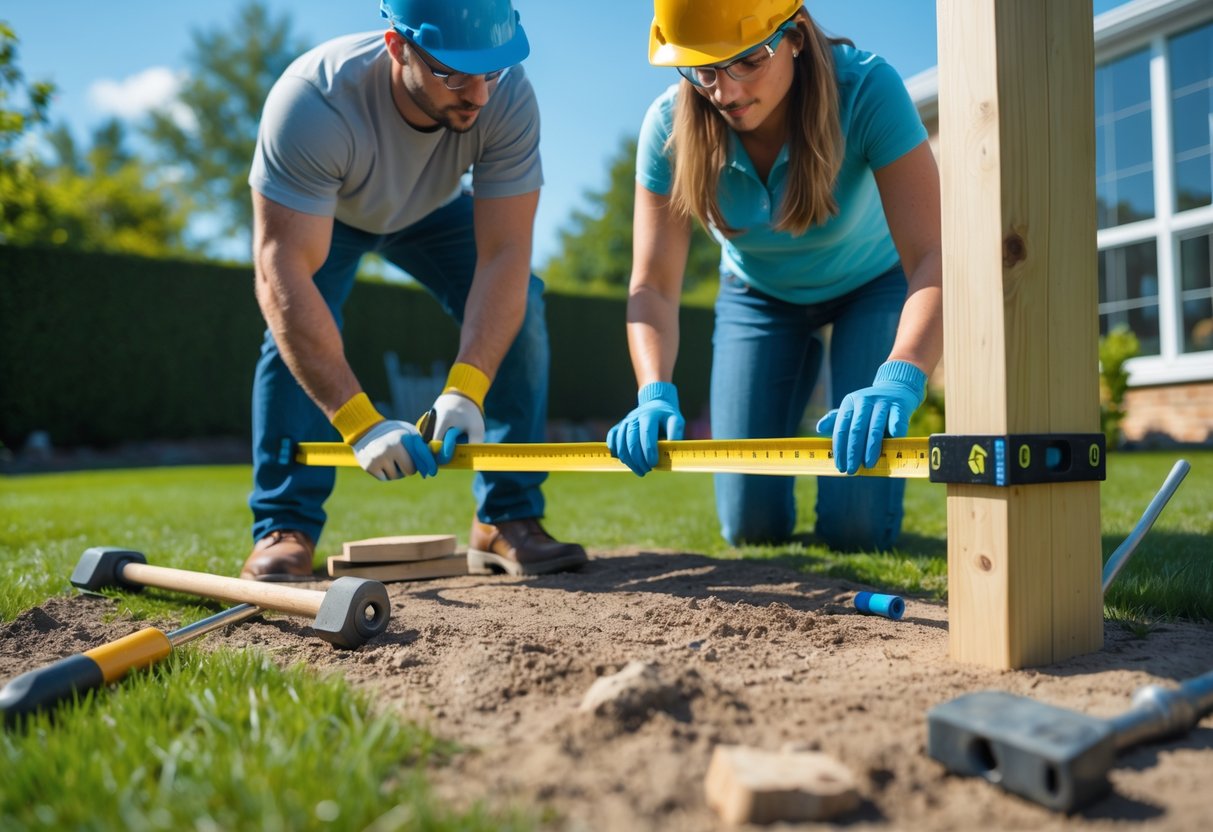

Two people preparing an outdoor site by measuring and inspecting wooden posts for building a pull-up bar in a backyard.

A solid site is the backbone of a safe, long-lasting pull-up bar. Double-check your layout, clear space for strong posts, and look out for anything hidden under the surface.

Marking Layout Accurately

Getting the layout right at the start saves you a lot of hassle later. Measure the width you want between posts—usually 36 to 48 inches for most bars. Make sure the posts line up straight and stand perfectly vertical. That’s what keeps the structure stable.

Use wooden stakes and mason’s line to mark where each post will go. Measure twice before you grab any tools. A solid DIY outdoor pull-up bar guide recommends using a level to check everything—this step keeps your bar from ending up crooked.

Digging Post Holes Safely

Digging post holes is tough work, but it’s got to be done right. Shoot for at least 3 feet deep—this anchors the posts and keeps everything upright, especially if your pull-up bar is six feet high. That depth really matters for safety and making sure it lasts.

A post hole digger works way better than a shovel for clean, straight holes. And don’t forget to call the utility locating service before you start—nobody wants to hit a buried line. If the soil at the bottom is loose, just tamp it down with a heavy stick or metal bar for a solid base.

Dealing With Obstacles Like Roots and Rocks

Running into roots and rocks is almost guaranteed. Smaller roots? Slice through with a pruning saw or axe. Giant roots might mean you’ll want to shift your hole a bit rather than fight a tree.

Rocks take some patience. A digging bar or crowbar can usually pry them out. If a rock is just too big to budge, toss some gravel in the bottom for drainage and a stable base. Keep those holes free of debris so posts sit even and last longer.

Building the Pull-Up Bar Frame

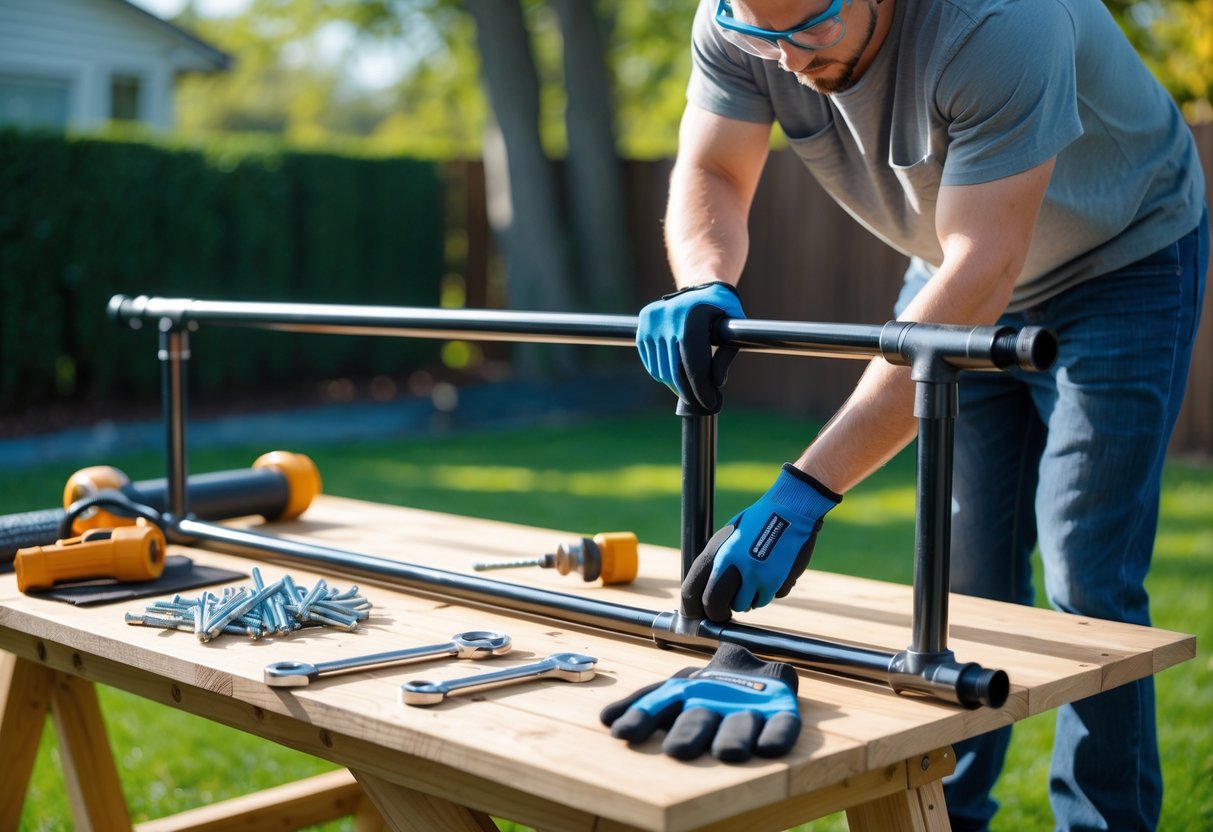

Person building a sturdy outdoor pull-up bar frame in a backyard using tools and safety equipment.

A solid frame is what keeps your pull-up bar safe. Use strong, weather-resistant materials that can handle the outdoors and plenty of use.

Cutting and Preparing Posts

Go with 4x4 pressure-treated timber, usually cut to 9 or 10 feet. That gives you enough height for pull-ups and plenty of length to bury deep for stability.

Before you install, sand off rough edges and treat any cuts with wood preservative. For digging, stick with a post hole digger—make the holes at least 2 feet deep. The deeper, the better.

Drop some gravel in each hole for drainage, then pour in quick-setting concrete around the base. Use a level to keep everything straight. If you’re a visual learner, check out this YouTube guide for a step-by-step example.

Attaching the Crossbar Securely

The crossbar will take all your weight, so don’t skimp here. Most people use a galvanized steel pipe, about 1-1.5 inches thick and 4-5 feet long. If you need to cut it, smooth out the edges.

Drill holes through the posts at your chosen height, slide the bar through, and lock it in place with collars or heavy-duty bolts. Some folks use metal pipe flanges screwed into the outside of each post and thread the bar right in.

Pick rust-resistant hardware. If you’re screwing into wood, pre-drill to avoid splitting. Want more ideas? This Reddit thread is full of tips.

Verifying Structural Stability

Before you even try a pull-up, grab the crossbar and give it a good shake. It shouldn’t wobble at all. Posts should feel like they’re part of the ground.

Check every nut, bolt, and flange for a tight fit. If something moves, tighten it up or re-check your work. Let the concrete cure for at least 24-48 hours—don’t rush it.

If you’re planning on dynamic moves or heavy use, add extra bracing for peace of mind. Sweep up debris and mark the workout area so you don’t trip over anything later.

Setting the Posts in Concrete

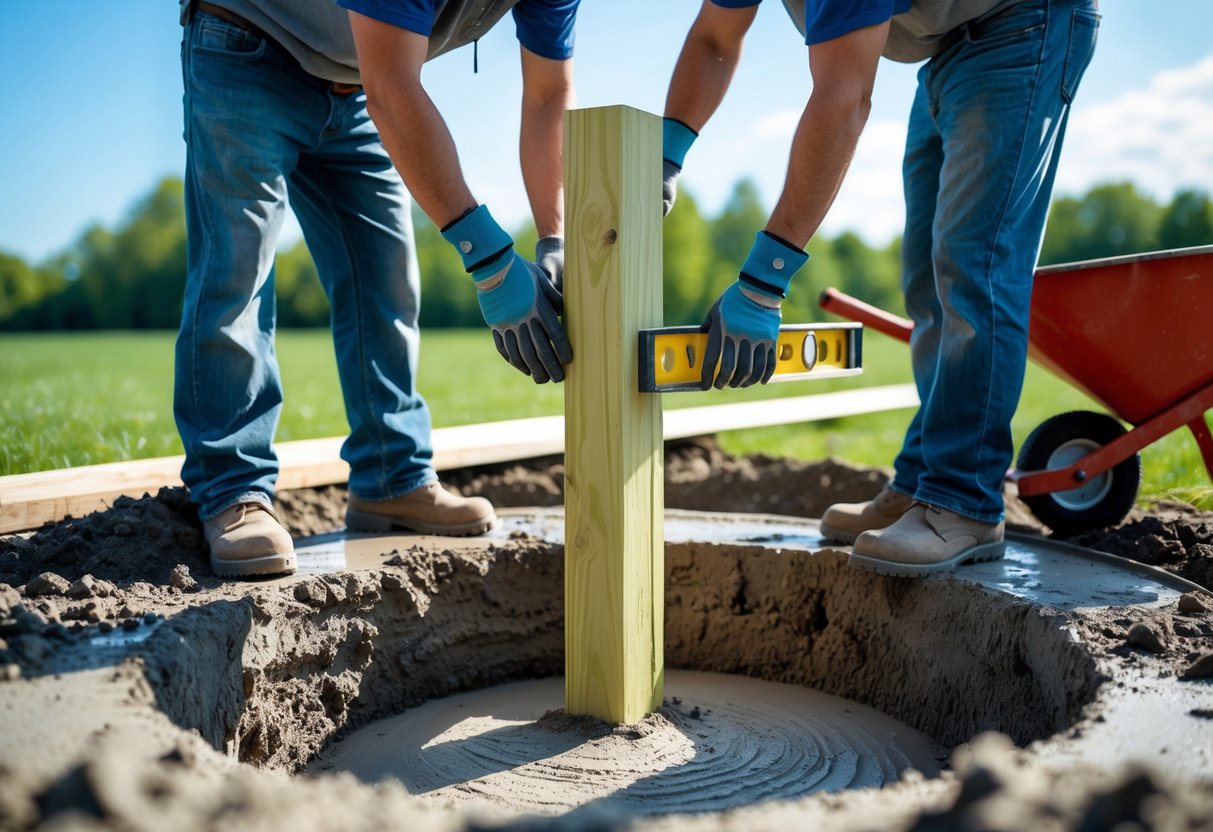

Two workers setting a wooden post in wet concrete outdoors to build a pull-up bar.

Getting the posts set right is the backbone here. You want a solid base, not a wobbly mess, so pay attention to every step—from mixing the concrete to letting it cure.

Mixing and Pouring Concrete Correctly

Grab a premixed bag of concrete—one 60- to 80-pound bag per post usually does the trick. A wheelbarrow and a sturdy hoe make mixing way easier.

Follow the water instructions on the bag. Too much water weakens the concrete, too little and you’ll get dry spots. Aim for a thick, peanut butter-like consistency.

Pour the concrete around each post. Fill halfway, tamp it down, then fill to the top and tamp again to get rid of air pockets. That keeps the posts locked in place.

Some folks wrap wood posts in plastic before setting them in concrete to help prevent rot. If you want more detail, check out this backyard pull-up bar guide.

Leveling and Aligning Posts

Before the concrete sets, make sure your posts are perfectly upright and spaced right. Use a bubble level on two sides for a true 90-degree angle.

Brace the posts with scrap wood or boards, anchored into the ground. Check alignment from every angle. Even post height and spacing matter so your bar sits level.

Double-check everything now—fixing mistakes after the concrete sets is almost impossible.

Curing Time and Weather Concerns

Concrete needs time to get strong. Fast-setting mixes let you move on in 24-48 hours, but waiting three days is even safer before you put any weight on it.

If it’s raining or the weather’s all over the place, cover the fresh concrete. Keep it damp, not soaked, to help it cure evenly. Drying out too fast can cause cracks.

In colder climates, watch for overnight frost. Toss on some straw or a blanket if needed. For more hands-on tips, here’s a step-by-step guide.

Installing and Securing the Pull-Up Bar

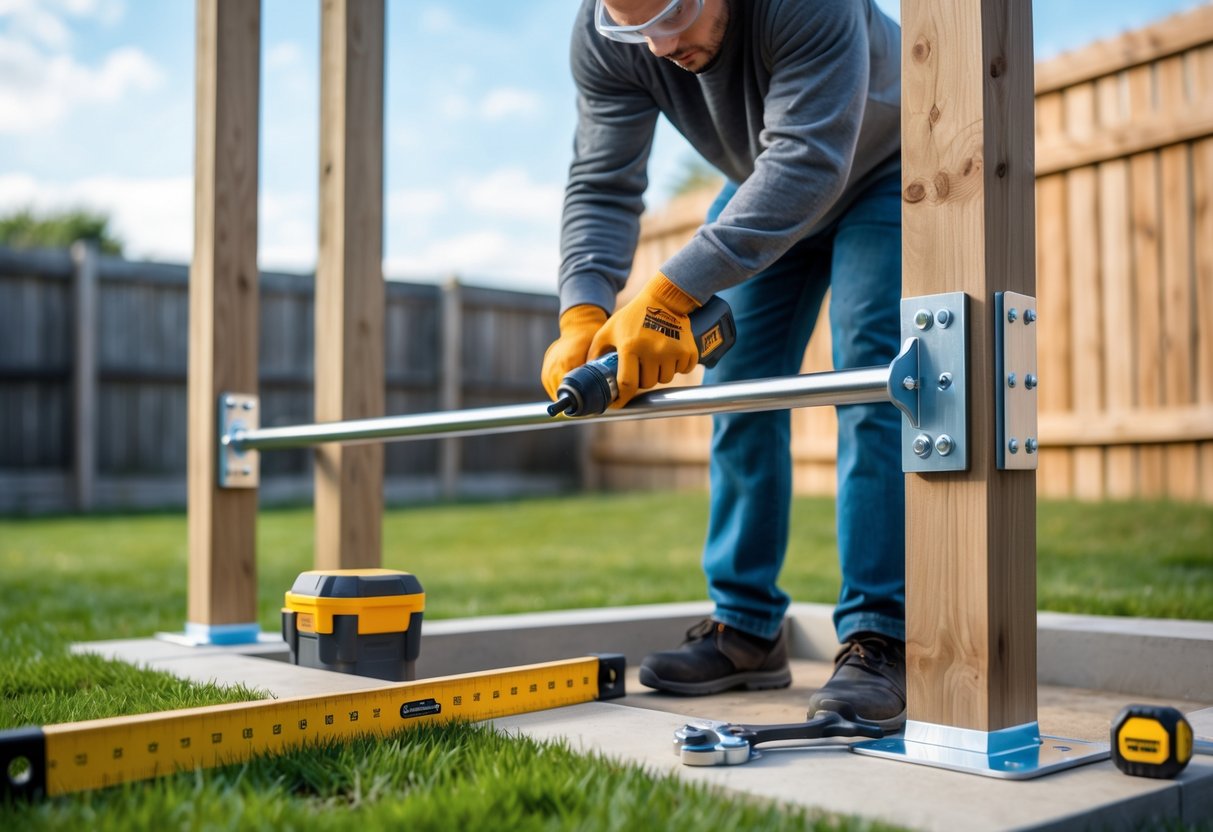

A person installing a sturdy outdoor pull-up bar between two wooden posts in a backyard using a drill.

Securing your pull-up bar isn’t just about muscle. The hardware and how you install it matter a lot. Bolt choice, bar movement, and final checks all add up.

Mounting Hardware and Bolts

Let’s talk bolts. For timber posts, galvanized or stainless steel coach bolts (at least 10 mm thick) are solid and resist rust. Get bolts long enough to go all the way through, and use washers and locking nuts for backup.

If you’re mounting into masonry or brick, sleeve anchors or expansion bolts are what you want. For extra strength, put a steel plate between the wall and brackets—especially if the wall is old or soft. Outdoor gym kits often come with the right fasteners, but check load ratings and compatibility.

Here’s a quick hardware cheat sheet:

Surface Type Recommended Bolt Type Minimum Diameter
Timber Post Galvanized/Stainless Coach Bolt 10 mm
Masonry/ Brick Sleeve Anchor / Expansion Bolt 10 mm

Preventing Bar Rotation

Nobody wants a spinning pull-up bar mid-set. Clamp the bar tight with fixing plates or flanges at both ends. If you’re using metal pipe, threaded ends with locking nuts help, but welding brackets or end stops is even better.

Drill through both the bar and post and run a bolt or pin through to physically stop rotation. Skip U-bolts—they loosen over time. Check these fixes regularly, especially after bad weather.

Rubber shims or wooden dowels between bracket and bar can cut down on micro-movement. If anything feels loose, tighten it up right away.

Double-Checking Tightness and Alignment

Before you call it done, check everything for tightness and make sure the bar’s level. Use a spirit or laser level for a perfectly horizontal bar. An uneven bar is not just annoying—it can mess with your form or even hurt you.

Go around and tighten every bolt and nut. Measure from the ground to both ends of the bar to make sure they match. Sometimes things settle a bit, so check again after a day or two.

Hang from the bar or do a few careful pull-ups to spot any flex or weird noises. If something feels off, fix it now—your shoulders will thank you. For more details, Garage Gym Experiment has a solid guide on tightening and checking alignment.

Weatherproofing and Maintenance

Person installing a sturdy outdoor pull-up bar in a backyard with tools and safety gear.

Setting up a pull-up bar outside means you’ve got to protect it from the weather and keep it in shape. Let’s get into the best finishes, spotting rust, and keeping things running year after year.

Choosing Outdoor Finishes

Start with tough, weather-resistant finishes for both the frame and the bar. Galvanized or stainless steel for the bar is your best bet—these resist rust and don’t need much upkeep. For wood, pressure-treated lumber works, but sealing it with exterior-grade polyurethane or a good oil-based sealer will help even more.

Here’s a quick checklist:

  • Metal: Use galvanized or stainless steel, or coat with rust-resistant enamel paint.
  • Wood: Pressure-treated lumber plus a clear wood sealer or weatherproof stain.

Let everything dry all the way before using it. For extra durability, double up on coats—especially around the bottom of the posts where moisture collects.

Inspecting for Wear and Corrosion

Regular checks catch problems before they get big. Every few weeks, look over the bar for rust, chipped paint, or cracks in the finish. Focus on where the bar meets the posts and any exposed metal.

If you see rust, sand it off and touch up with outdoor primer and paint. For wood, look for splinters or soft spots and sand or reseal as needed. Give all bolts and screws a quick check with a wrench every month—just to be safe.

Seasonal Care for Longevity

When seasons shift, outdoor gear needs a bit of extra attention. In wet or snowy weather, a heavy-duty waterproof cover keeps the bar and frame from soaking up moisture. Skip the flimsy tarps—they usually rip or leak after a couple storms. It’s worth picking up covers made for outdoor fitness equipment, just like folks suggest on bodyweight fitness forums.

Twice a year, let’s clean and re-seal wood posts. Metal bars need a quick wipe with a lightly oiled rag to keep rust away. Clearing out leaves, dirt, and debris around the base helps keep moisture from sticking around, which means less rot and rust.

Safety Checks Before First Use

A person inspecting and tightening bolts on an outdoor pull-up bar in a backyard before first use.

Before we start cranking out pull-ups, it just makes sense to double-check our setup. We want the bar to feel solid, free of sharp bits, and the space clear—nobody needs an avoidable accident.

Load Testing the Bar

Let’s talk about load testing. Jumping onto a brand-new pull-up bar without testing it? Not a great idea.

Start by adding weight gradually—sandbags, backpacks, water jugs, whatever’s handy. Begin with about half your weight, then bump it up step by step to at least 1.5 times your own weight. If anything shifts, sags, or creaks, stop and reinforce things. For wood frames, tighten every joint and bolt; for setups between trees or metal posts, make sure everything’s anchored tight.

Try a few gentle tugs and hang for a moment before going all in. The bar shouldn’t flex or move during this.

Ensuring No Protruding Edges

Sharp edges or bolts sticking out can ruin your day. We want smooth, flush surfaces wherever our hands go.

Look closely for rough welds, screws, or sharp metal. For wood, sand everything down and slap on a weatherproof finish. Tighten nuts and bolts, and if possible, use caps or countersink them. Metal ends need a file to smooth them out. Grip tape or athletic tape helps, but don’t let it hide a sketchy edge.

If you spot anything that could scratch or cut, fix it first. Safe, smooth contact points are the goal.

Maintaining a Clear Workout Area

A good workout starts with a clear space. Tools, rocks, or stray branches underfoot? That’s just asking for trouble.

Clear out the space under and around the bar:

  • Move equipment, buckets, or loose stones.
  • Trim back any branches or plants that could get in the way.
  • Watch for uneven or slippery ground. If you can, put down a mat or mulch for a softer landing.

Take a quick walk around before each session. Stuff piles up fast, and a quick tidy keeps you safe and focused.

Fun Upgrades and Accessory Ideas

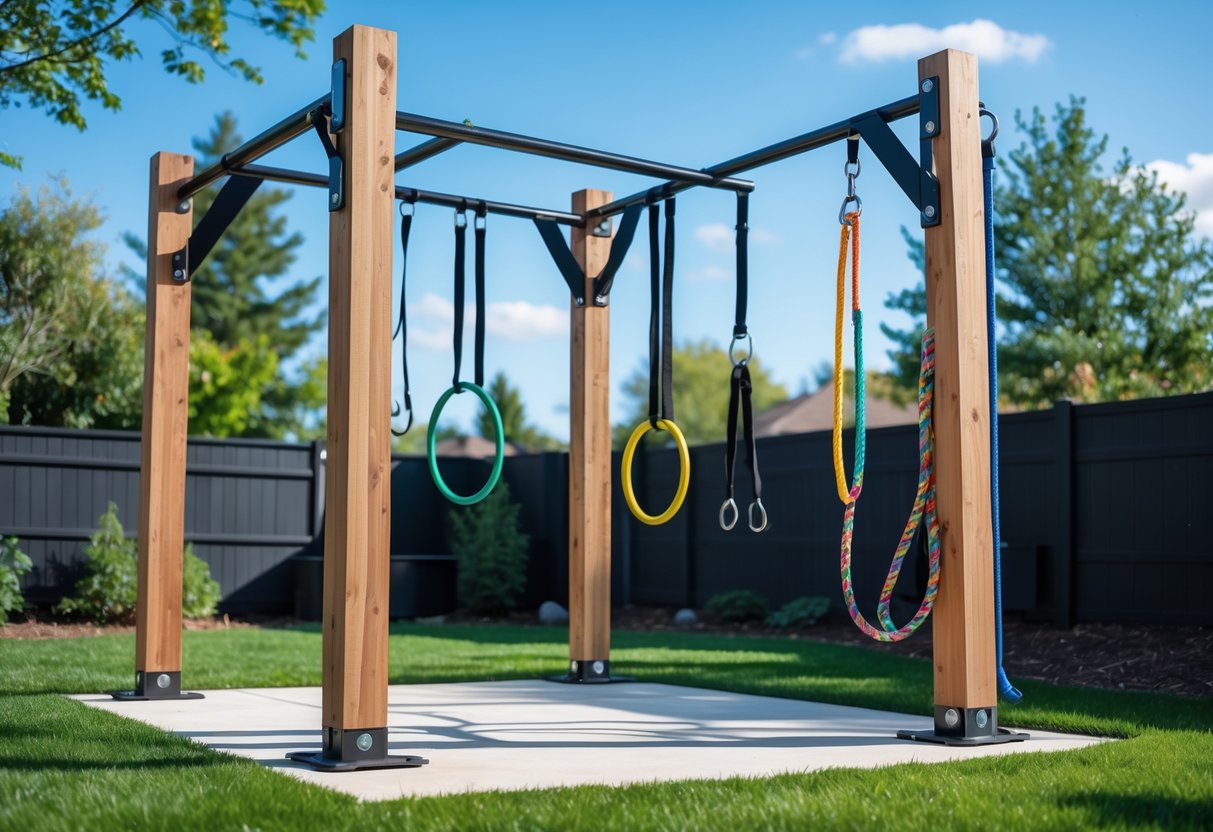

An outdoor pull-up bar securely installed in a backyard with gymnastic rings, resistance bands, and a climbing rope attached.

Who says an outdoor pull-up bar has to be basic? Upgrades and accessories can make training way more interesting.

Adding Anchors for Resistance Bands

Anchors let us use resistance bands for warm-ups, assisted pull-ups, or adding resistance. Install heavy-duty eye bolts or metal loops on the uprights or bar itself.

Set them at different heights—knee, waist, and overhead—for variety. Stainless or galvanized hardware holds up best outdoors. Snag some quality carabiners for quick swaps.

Make sure the anchors are tight and solid. A tip: use washers and nuts on both sides of wooden posts for extra strength. With a few anchors, you can do a lot more without changing the bar. Here’s a DIY example if you want ideas.

Installing Multiple Grip Positions

Changing up your grip works different muscles and keeps things interesting. Neutral grips, wide grips, angled handles—they all have their place.

Bolt on metal pipe handles, attach timber dowels, or mount parallettes across the frame. Mix up the spacing so you don’t smash your fingers. Make sure every grip has a non-slip surface; athletic tape or textured material is a must, especially outside where things get slick.

Incorporating Gymnastics Rings

Gymnastics rings might be the best upgrade out there. Hang them from your pull-up bar with tough straps and heavy-duty carabiners. Suddenly, you can do dips, muscle-ups, L-sits, and more.

Pick rings made of weather-resistant plastic or sealed wood. The straps should handle big weights and have solid buckles to stop sagging.

Give yourself enough space overhead and between the rings so you don’t whack the posts. Once they’re up, you’ve got a portable tool for endless calisthenics. Want to see it in action? Here’s a DIY pull-up bar build that uses rings.

Frequently Asked Questions

Person assembling a sturdy outdoor pull-up bar in a backyard using tools and safety gear.

Building your own outdoor pull-up bar feels awesome, but there are always a few snags. Let’s tackle some common questions and tips to make sure your setup survives the weather and heavy use.

What materials do I need to construct a durable wooden pull-up bar in my backyard?

You’ll want pressure-treated 4x4 or 6x6 lumber for the posts. For the bar, go with steel or galvanized pipe—it lasts way longer than wood.

Grab galvanized screws or bolts, concrete for the posts, and exterior-grade brackets if you need extra support. For a full material list, check out this FitBeast outdoor pull-up bar tutorial.

Any pro-tips on anchoring a free-standing pull-up bar to ensure it doesn't wobble during workouts?

Dig your post holes at least 2 feet deep and fill them with concrete. Using wider posts and adding horizontal braces makes a big difference.

If you want something more portable, sandbags or heavy base plates can help, but nothing beats concrete for stability. Reddit has some solid advice on minimizing sway in this pull-up bar discussion.

When installing a wall-mounted pull-up bar outdoors, how do you protect it from the elements?

Use galvanized or stainless steel for the bar to fight rust. A coat of outdoor metal paint helps too.

Check bolts and mounts regularly for corrosion. Cover the bar with a tarp or removable cover when you’re not using it.

Building a DIY pull-up and dip station combo – what's the best design to maximize stability?

Use triangular braces or cross-supports between the vertical posts and bars. Connecting the pull-up and dip stations in one frame really boosts stability.

Set the posts deep in concrete and space them wide enough for comfortable movement.

What's the secret to making a pull-up bar that can hold up to muscle ups and other dynamic exercises?

Mount the bar securely—set it in concrete or bolt it to a solid wall so there’s zero wiggle. Go with a bar at least 1.25 inches in diameter to prevent flex.

Keep the area clear of obstacles and check all fittings before you train. Heavy-duty steel and deep-set posts give you peace of mind for explosive moves.

Is it possible to repurpose a ceiling-mounted pull-up bar for outdoor use without compromising safety?

Technically, you can, but let's be honest—it's a bit risky. Most ceiling-mounted bars just aren't built to handle rain or wild temperature swings.

If you're set on trying, swap out the regular hardware for galvanized or stainless steel, and make sure you’re mounting it to something truly solid and weather-resistant. Slap on some rustproof paint, check it often, and don't ignore any signs of wear.

Back to blog
