Selecting Gravel-Bike Tires For Mixed Clay And Sandy Terrain

Riding on mixed clay and sandy terrain can be a real challenge for our gravel bikes. The right tires make all the difference when it comes to grip, control, and confidence. We need gravel-bike tires with tread patterns and widths that balance traction in clay and sand while avoiding mud buildup or sinking.

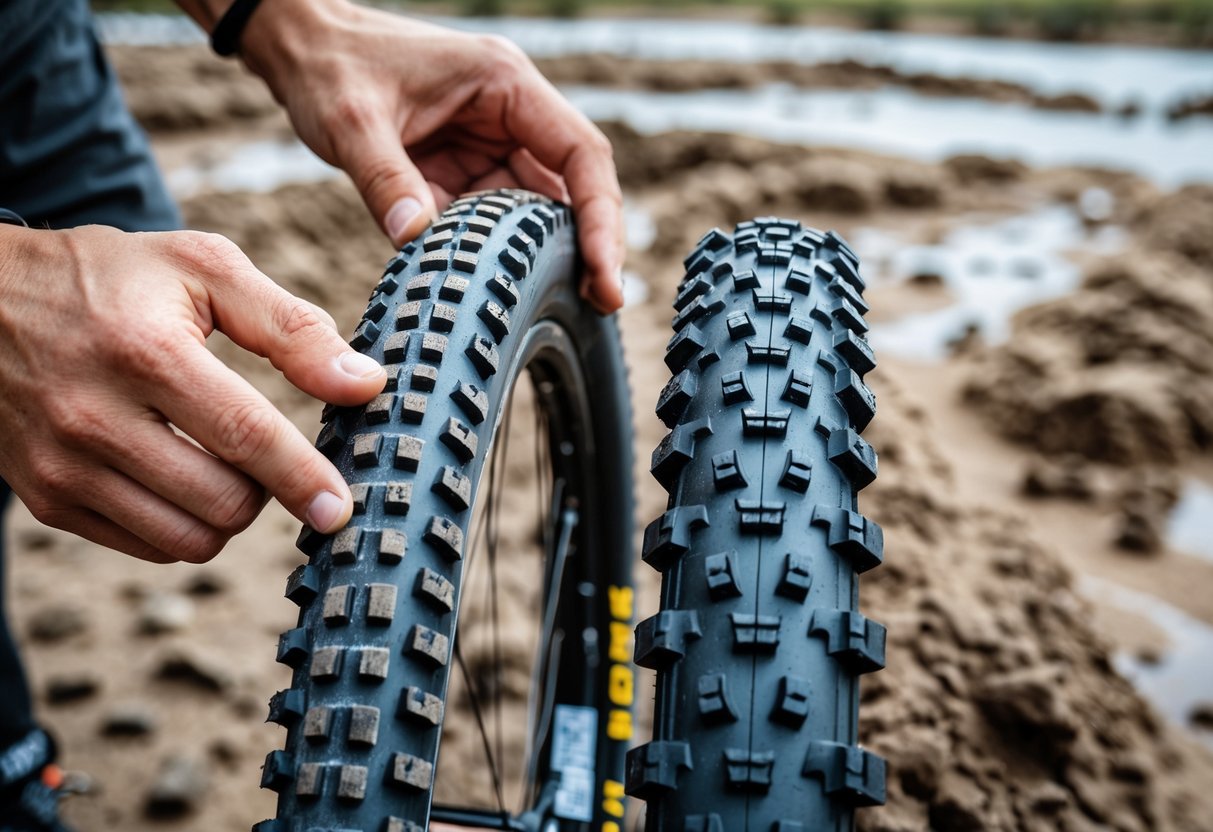

Hands holding two different gravel bike tires outdoors with clay and sandy ground in the background.

Choosing tire pressure, casing type, and setup style all play a big role in how our rides feel on mixed ground. Features like durability and puncture resistance can save us from headaches down the trail. Let’s look at how to pick tires that work for our budget, local conditions, and riding style.

Key Takeaways

  • Tread design and tire width matter for clay and sand.
  • Tire setup and pressure affect grip and comfort on mixed terrain.
  • Durability and maintenance help tires last longer.

Understanding Mixed Clay And Sandy Terrain

A gravel bike on mixed clay and sandy terrain showing the tires gripping the ground with clay and sand patches around.

Mixed clay and sandy terrain can be unpredictable. We need to understand how these surfaces affect our ride so we can choose the right tires and avoid getting stuck or slipping.

Challenges Presented By Clay And Sand

Clay sticks to our tires and forms thick layers that make pedaling slow and heavy. Bikes can get bogged down if the trail is wet. Sandy spots, on the other hand, make our wheels sink and slide. There’s not much grip, and it’s easy to wash out in a corner or lose momentum on a climb.

What makes mixed terrain tough is never knowing when we’ll hit a patch of clay or sand. The tires have to deal with sudden changes in firmness, with some parts sticky and others loose. We’re always adjusting—searching for traction without wasting energy.

In dry conditions, clay can be rock-hard and fast, but as soon as there’s moisture, it grabs the tread and quickly ruins rolling speed. Sand is unpredictable and saps our energy, especially on long sections. This means we need to be sharp and pick a tire that won’t leave us spinning—or stuck.

How Tire Performance Changes With Soil Type

Tire performance changes a lot between clay and sand. Narrow, low-profile tires can slice through dry clay but will load up with mud if it’s wet. On wet clay, we need tires that shed mud easily, or we’ll carry pounds of extra weight.

Sandy surfaces need wider tires with lower pressure so we can float on top instead of digging in. Traction is key—skinny tires just dig ruts or stall out. Chunky side knobs help keep us upright and give control in loose sand, especially around corners.

Table: Tire Features & Terrain Matching

Terrain Best Width Tread Pattern Tire Pressure
Wet Clay 38-45 mm Widely spaced, mud-shedding Slightly higher
Dry Clay 35-42 mm Low-to-mid, fast, open tread Moderate
Sand 42-50 mm Large paddles, aggressive Lower
Mixed 40-45 mm Versatile, open design Moderate-low

Getting the balance right is important. Tires that work in just one soil type might not work the next minute if we hit something different.

Key Features Needed For Versatile Tires

We need tires that handle both stickiness and softness without fuss. Versatile tread patterns with spaced knobs let mud fling off easily but have enough edges to grip in sand. Medium-width tires—usually 40-45 mm—work for most mixed trails.

Side knobs help keep control in corners when the bike tries to slide. Strong casing reduces the risk of pinch flats or sidewall cuts from hidden rocks. Tubeless-ready setups let us run lower pressures without worrying about flats.

A good mix of puncture resistance, flexible casing, and a tread that isn’t too aggressive or too smooth covers more ground. Think of it as the “Swiss Army knife” of tires—ready for whatever dirt, sand, or clay mix we roll into.

Tread Patterns For Optimal Grip

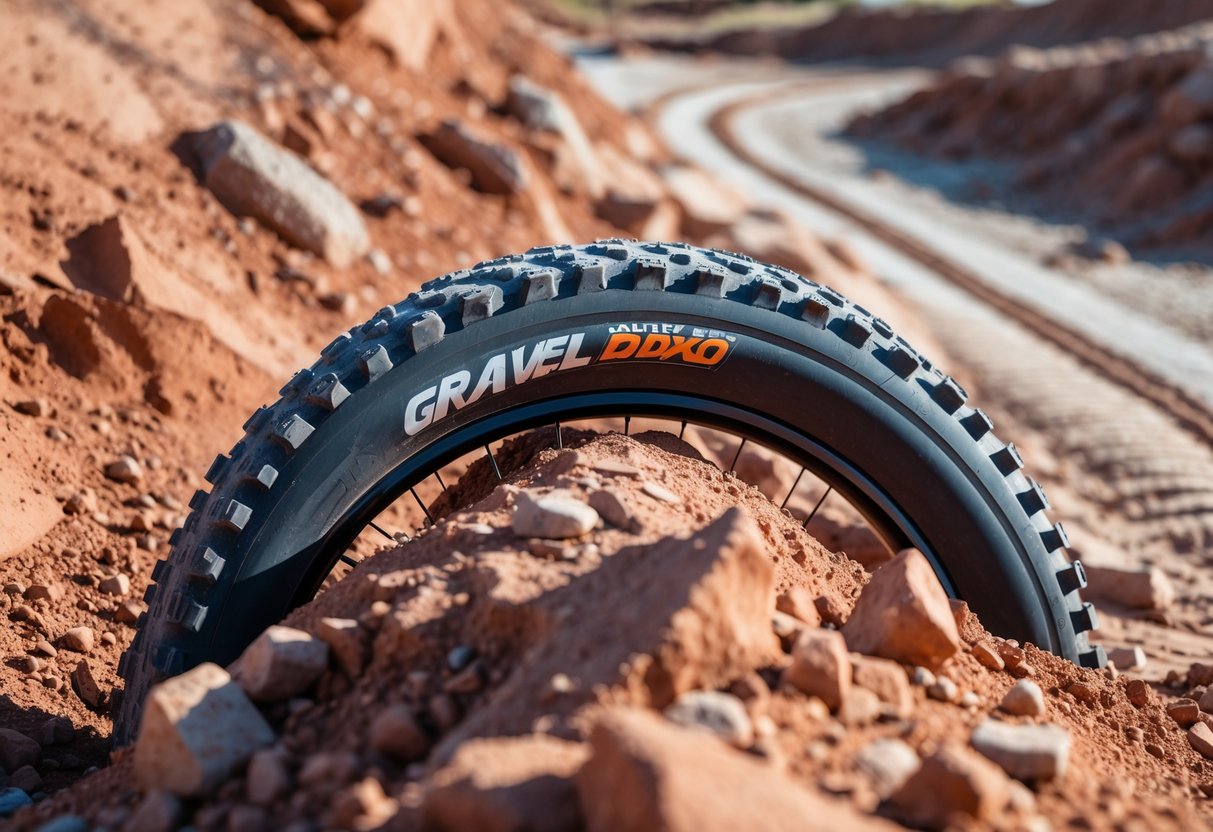

Close-up of a gravel bike tire with detailed tread patterns on clay and sandy ground.

Choosing the right tread pattern can make the difference between slipping and riding with confidence. Our decisions depend on how the tire handles sticky clay and loose sand, as well as how often we hit mud or packed dirt surfaces.

Open Vs Tight Tread Designs

When we pick gravel bike tires, the tread pattern really matters. Open treads (with wider gaps between knobs) help the tire bite into soft ground—like clay after rain. They dig in and improve grip when things get slippery.

Tight treads (with closely spaced knobs) tend to roll faster on smooth or hard-packed gravel. However, they can pack up with mud, making them less useful if we’re in sticky clay often. Here’s a quick look:

Tread Type Best For Downside
Open Muddy, soft, or loose ground Slower rolling on pavement
Tight Dry, firm surfaces Poor mud clearing

Most of us who ride a mix need a pattern that leans open, but not so much that it drags in the sand.

Mud Shedding Capabilities

If we ride anywhere near wet clay or get caught in rain, mud-shedding is a big deal. Tires with widely spaced knobs allow sticky clay and mud to fall away as the tire spins. This keeps us from carrying extra weight and losing traction.

We should watch for tall, spaced-out knobs along the sides, as these help clear thick mud and minimize clogging. Some tire makers add special grooves or channels to help too. Avoiding slick tread or tightly packed knobs keeps our tires from turning into oversized mud donuts on the trail.

Traction Needs In Sandy Sections

Loose sand changes everything. We need wider tires and knobs that are not too tall, because tall knobs can dig in and slow us down. Shorter, more stable knobs in the center keep the tire from washing out, especially when we’re carrying speed or cornering.

In deep sand, a slightly lower tire pressure can help us float rather than sink. We should look for a balance: knobs spaced enough to grip but close enough to avoid fishtailing. Wide casings with stable tread let us steer smoothly without burying ourselves in every soft patch.

Tire Width And Volume Considerations

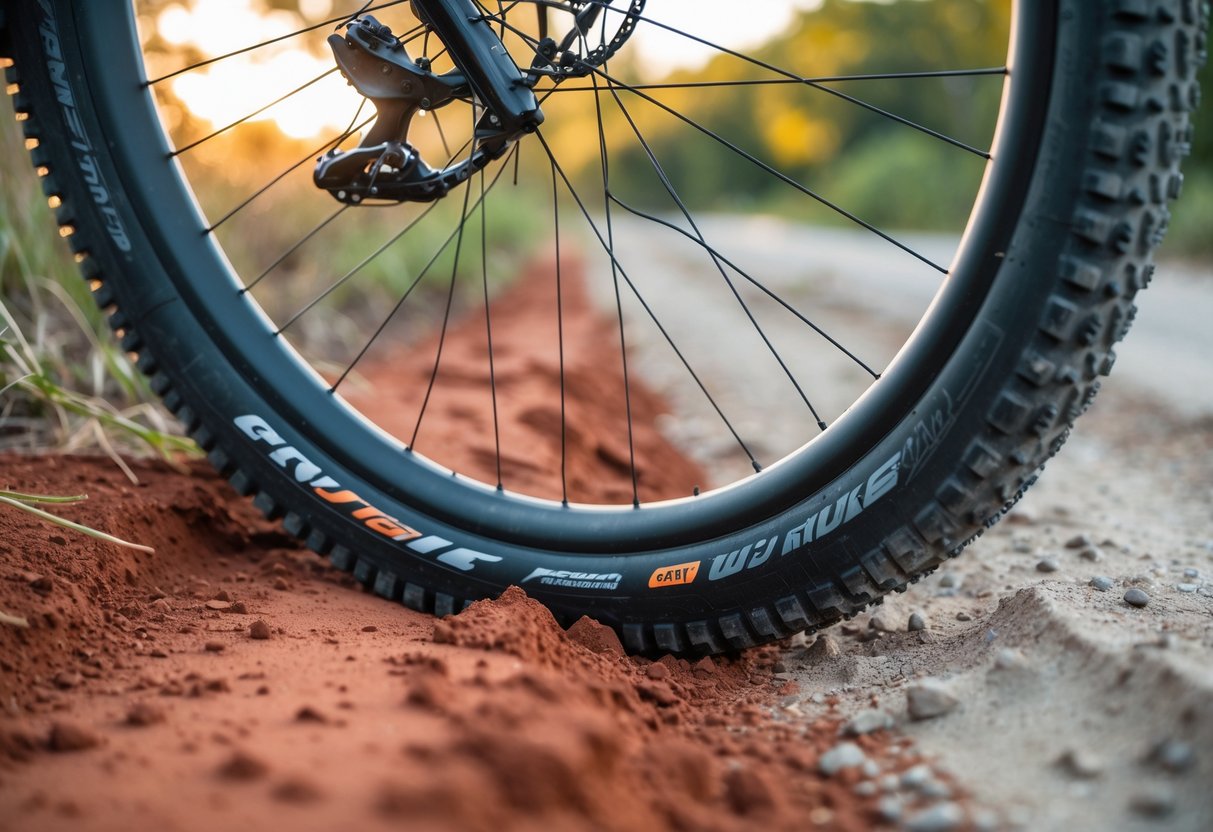

Close-up of a gravel bike tire on mixed clay and sandy terrain outdoors.

Choosing the right tire width and volume for our gravel bikes directly affects how we handle mixed clay and sandy terrain. We need to think about how tire size changes grip, ride quality, and even our speed.

Effects On Stability And Flotation

Wider gravel tires, like those between 42mm and 50mm, help us avoid sinking into sand and soft clay. They spread our weight out, which increases flotation. Riding a narrow tire in deep sand is a lot like trying to walk on the beach in high heels—it just doesn't work well.

In mixed conditions, we want a tire that limits the chance of getting bogged down while still rolling smoothly. Extra volume also lets us run lower pressures without risking rim damage. This improves comfort on rough patches and adds control in loose spots.

  • Narrower tires (35-40mm): Less flotation, more likely to sink in sand or soft clay
  • Wider tires (42-50mm): More stability, better grip, and reduce risk of losing balance

A fat tire isn't magic, but it does make those unpredictable surfaces a lot less stressful to ride.

Balancing Speed And Comfort

We face a classic trade-off when picking tire size: wide tires are more comfortable, but slimmer ones can feel faster. For long mixed routes, comfort is key. Fatigue from rough trails and vibrations can sap our energy over time.

Wider tires, when run at lower pressures, soak up bumps and chatter. That means less bouncing and better control. Still, too wide or low pressure might slow us down, especially on hard-packed sections.

A good balance might look like:

Tire Width Comfort Speed Best Use
35-38mm Low-Med High Firm, mixed trails
40-45mm Med-High Med Clay/Sandy, mixed
47-50mm High Low-Med Deep sand, soft clay

We don’t need to go as wide as a mountain bike tire, but stepping up from the narrow end can make a long day way more enjoyable.

Choosing Appropriate Tire Pressure

Close-up of a gravel bike tire on a mixed clay and sandy path with natural surroundings.

Getting tire pressure right can make rides smoother and help us handle clay and sand much better. We need to balance grip, comfort, and speed by adjusting our tire PSI to match the ground beneath us.

Lower Pressure For Softer Grounds

When we ride on soft surfaces like sand or damp clay, dropping our tire pressure usually helps. A lower PSI lets our tires spread out and “float” over loose sand or sticky mud, so we don’t sink in and get bogged down.

Some of us worry about pinch flats, but with tubeless setups, we can go lower—think 30-40 PSI for most gravel tires. The tire gets more surface area on the ground for better grip. Here’s where wide tires shine too. It’s worth checking the minimum recommended PSI on the tire sidewall, but we can sometimes go a little under if conditions are extra soft.

Tip: If we feel the tire deforming or squirming, we may have gone too low. It’s all about finding that sweet spot where we get traction, but the tire still feels stable.

Adjusting Pressure For Mixed Conditions

Mixed terrain with patches of hard clay, sand, gravel, and maybe even some pavement keeps us on our toes. In these conditions, we need to strike a balance.

We don’t want to go so low that the tire gets floppy or “washes out” in harder turns, but not so high that it’s bouncing off bumps or sinking in soft patches. A moderate range—35–50 PSI, depending on our weight and tire width—works well for most of us.

We should also check pressure before every ride since temperature and time can change PSI. If conditions feel unpredictable, it’s smart to stop and tweak the pressure mid-ride. Carrying a small hand pump and gauge lets us dial things in—no shame in adjusting as we go!

Quick Pressure Guide:

Terrain Recommended PSI
Sandy/Clay 30–40
Mixed Surface 35–50

Tubeless Vs Tube Setups

Close-up view of two gravel bike tires on clay and sandy ground, showing a tubeless tire and a tube tire side by side.

When we're picking tires for clay and sandy rides, the debate between tubeless and tube setups really matters. Our choices will affect traction, puncture resistance, and if those tires fit our rims at all.

Benefits For Traction And Puncture Resistance

With tubeless setups, we get to run lower tire pressures since there’s no inner tube to pinch. This improves traction on loose sand and helps us glide over sticky clay without sinking in. Less air pressure means more of the tire touches the ground, giving us better grip where it counts.

Tubeless tires also self-seal small punctures, thanks to the liquid sealant inside. This comes in handy when we’re tackling sharp gravel or thorns hidden in softer sand. No more stopping every few miles to fix a flat—usually, the sealant deals with tiny holes for us.

Here’s a quick comparison:

Setup Traction Benefit Handles Small Punctures? Risk of Pinch Flats
Tubeless High Yes (sealant) Very low
Tubed Medium No Higher

Tube setups can be a bit simpler, but they often need higher pressures to avoid pinching. That can make our ride feel bouncy over sand and slippery on wet clay.

Compatibility With Gravel-Bike Rims

Not every gravel-bike rim is built for tubeless tires. We’ve got to check for “tubeless ready” or “tubeless compatible” labels on our wheels. If those are missing, getting tubeless might mean fussing with special rim tape or just swapping for a different rim.

With tubes, rim compatibility isn’t much of an issue—pretty much any rim will do. That’s one less thing to stress about, especially if we’re working with older or bargain gear. But once we’ve got tubeless-ready rims, we can pick from wider tires and experiment with lower pressures.

Rim width matters, too. Wider rims and tubeless tires are a good match, keeping “burping” (that sudden air loss) to a minimum. For tubes, rim fit isn’t as picky, but extremes in width can mess with tire shape.

Not sure about our rim’s specs? It’s worth a quick check online or a chat at the local shop. A little research now can save us headaches (and flats) later.

Recommended Gravel-Bike Tire Models

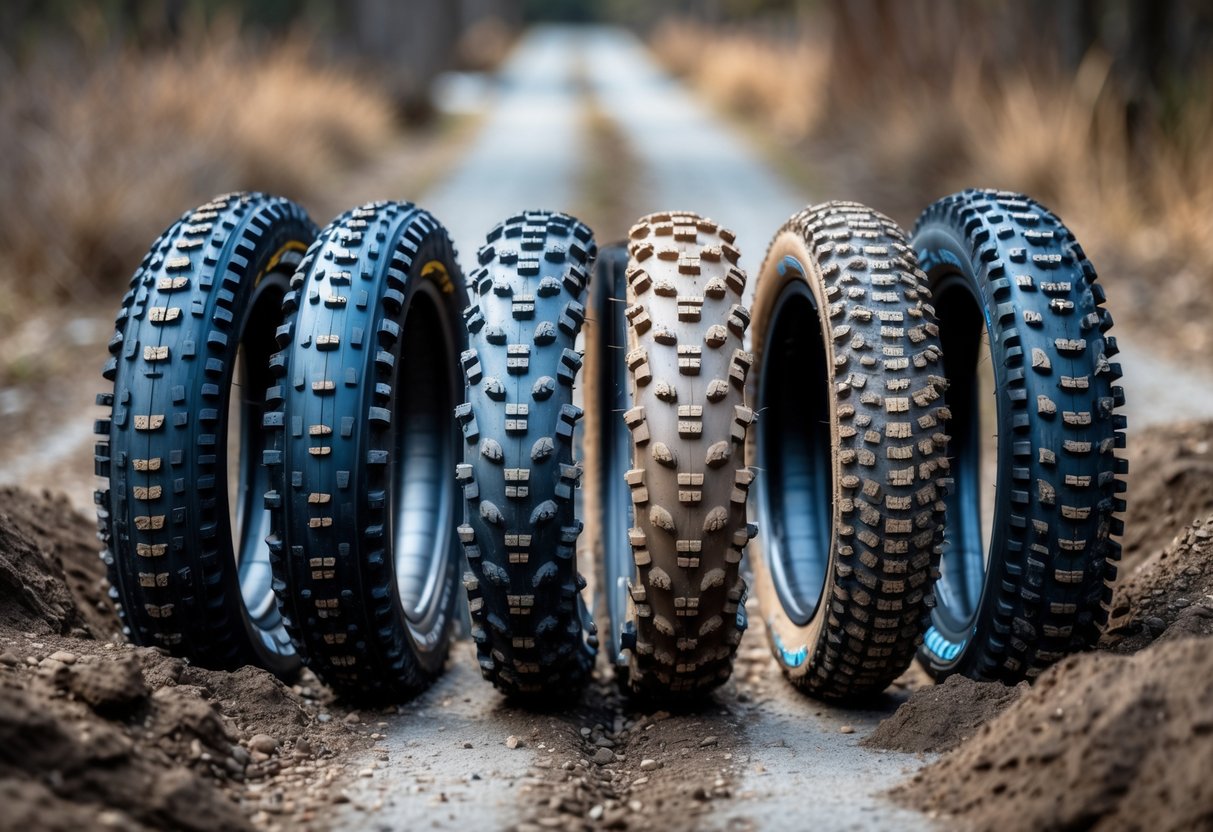

A close-up view of several gravel-bike tires displayed on a wooden surface with clay soil and sand nearby.

Choosing the right tire honestly makes a huge difference on clay and sandy trails. Here are a few models we’ve used or heard good things about for those unpredictable surfaces.

1. WTB Riddler 700c
Tightly packed center knobs keep things rolling fast, while chunkier side knobs bite when the sand gets deep. We like it for routes that mix it up.

2. Teravail Rutland
This one’s got an aggressive tread—just what you want for handling sticky clay and soft sand. It doesn’t shy away from wet spots either.

3. Panaracer GravelKing SK
A favorite for a reason. Rides smooth on hard clay, but the knobs grab in the sand. We’ve put a lot of trust in it for daily rides.

Here’s a quick comparison:

Tire Best For Notable Features
WTB Riddler Mixed surfaces Fast center, grippy sides
Teravail Rutland Clay & Sand Aggressive tread pattern
GravelKing SK Firm & Loose Versatile knobs, tough

Tubeless versions of these tires really shine in muddy patches—less chance of flats, plus you can run lower pressure. For sand, wider sizes (38–45mm) float better.

We haven’t found a perfect tire yet, but these have dragged us through some pretty wild conditions.

Durability And Puncture Protection

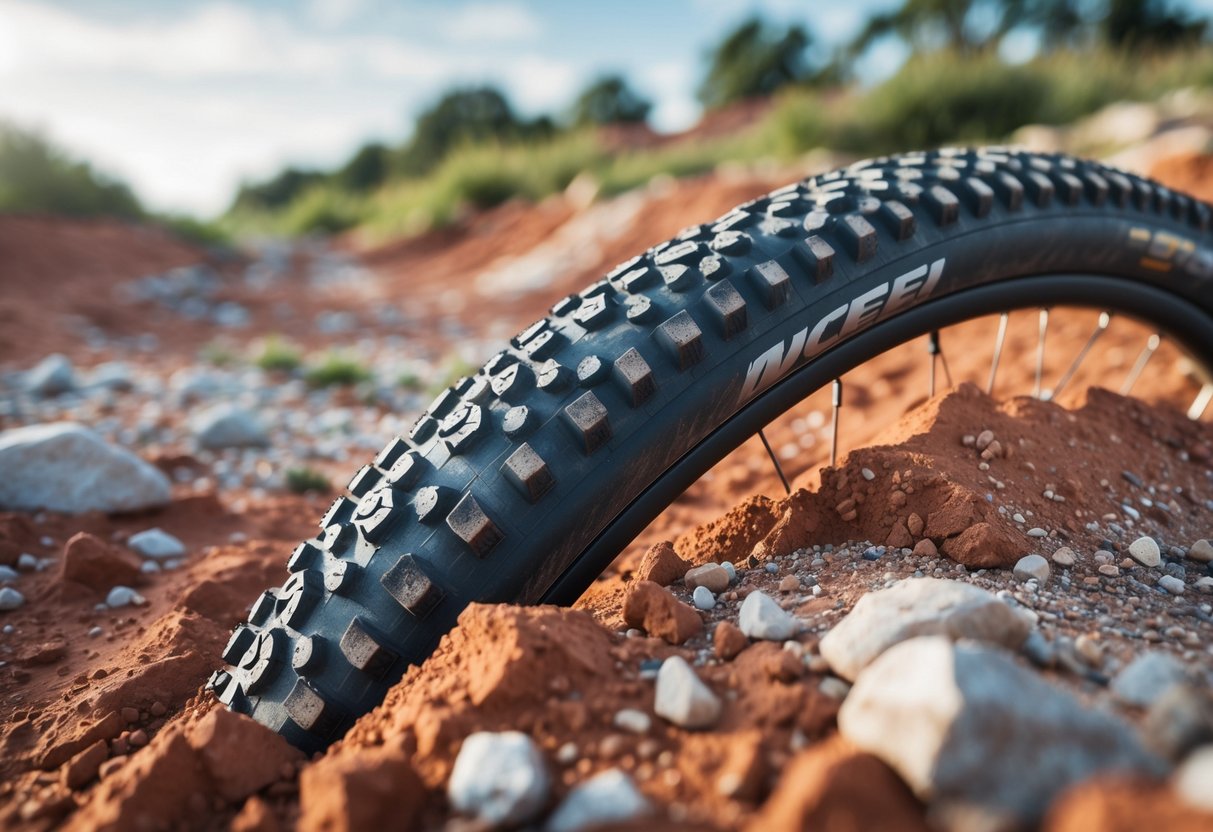

Close-up of a gravel bike tire on mixed clay and sandy terrain with small rocks and gravel.

Mixed clay and sand can be rough on tires—hidden rocks, sticks, and other sharp stuff are everywhere. Tires with solid protection help us dodge flats and keep moving.

Sidewall Strength For Tough Terrain

Gravel routes with clay and sand can hide some nasty surprises. Thin sidewalls just don’t cut it. We look for thicker rubber or reinforced fibers that shrug off cuts and scrapes.

Tires marked with EXO, SG2, or similar usually have bonus protection. Those layers act like armor when we brush past rocks or roots. Strong sidewalls also let us drop the pressure for more grip in sand without risking blowouts.

Here’s what helps with sidewall strength:

Feature Why It Matters
Thicker rubber Helps resist sharp objects
Reinforced fibers Reduces risk of tearing
Added protection layer Blocks deep cuts

If our sidewalls hold up, we spend more time riding and less time fixing.

Reinforced Casings Against Sharp Debris

Clay and sand are sneaky—broken glass, thorns, bits of metal can hide just under the surface. Standard casings often aren’t enough. We want an extra layer under the tread, like Kevlar or tough nylon, to keep the sharp stuff out.

Yeah, it adds a little weight, but honestly, it’s worth not walking home miles from nowhere. Make sure the puncture protection covers the whole tread, not just the center.

Common reinforcement types:

  • Double-layer rubber for extra toughness
  • Kevlar belts to block the nasty stuff
  • Full-coverage nylon weave from edge to edge

With a reinforced casing, we can ride harder and not worry so much about ending up stranded.

Seasonal And Weather Influences

Close-up of a gravel bike tire on mixed clay and sandy ground outdoors with signs of wet and dry conditions.

Weather on mixed clay and sandy trails can flip on us fast. Wet or dry, each brings its own tire challenges.

How Wet Clay Impacts Tire Choice

Wet clay? It’s like riding through peanut butter. Tread design is everything. We go for tires with deep, wide gaps between knobs—those help fling off mud and keep things from packing up.

Tires labeled "mud" or "all-conditions" usually have taller knobs and a softer rubber. Slicks or tightly packed treads are a nightmare in rain—they just collect clay and feel like dragging anchors. Dropping tire pressure helps with grip, but too low and we risk pinch flats.

Dry clay is way easier—almost any tire will do. Still, for those surprise spring or fall storms, having a spare with big knobs is a lifesaver.

Handling Shifting Sand In Different Weather

Sand changes with the weather. Dry, loose sand will swallow skinny tires and make steering feel wild. Go wide—at least 40mm—to float on top and keep control.

After rain, sand firms up and gives us more traction. In those moments, even narrower tires can work, but wide ones still feel better. If the monsoon just passed, almost anything will roll, but in summer heat, those wide, soft tires are the move.

A few tricks for sand:

  • Lower pressure for more surface area
  • Don’t crank the bars too hard in deep sand
  • Keep your speed up—momentum helps us skim across

Installation And Maintenance Tips

Close-up of hands installing a gravel bike tire on a wheel outdoors with clay and sandy ground visible.

Before heading out, let’s gather tire levers, a solid pump, a pressure gauge, and some rags. For tubeless, don’t forget sealant and a valve tool.

When installing, always check the rotation arrow on the sidewall. Seat the beads evenly. If the tire’s stubborn, a little soapy water helps. No shame in using whatever works.

Set tire pressure for the day’s route. On mixed clay and sand, a bit lower than usual gives more grip. Here’s a handy chart:

Rider Weight Suggested PSI
Under 150lb 30–40
150–200lb 38–45
Over 200lb 42–50

Give each wheel a spin and listen for weird noises—easier to fix now than halfway down the trail.

After every ride, brush off any clay or sand still clinging to the tread. Grit wears tires down fast if we ignore it.

Tubeless users: check sealant every couple months. If we shake the tire and don’t hear sloshing, it’s time for a refill.

Keep an eye out for cuts, thin spots, or missing knobs. If a section looks sketchy, swap it out. Air leaks or slow flats usually mean we picked up something sharp.

Oh, and don’t park your bike in the sun or a hot garage. Heat cooks rubber and makes flats more likely.

Budgeting For The Right Gravel-Bike Tire

A person examining different gravel bike tires on a wooden table outdoors with sandy and clay soil in the background.

Gravel-bike tires can cost anywhere from cheap to “wait, how much?” We don’t need to spend a fortune, but paying a bit more can mean fewer flats or longer life.

Here’s a rough breakdown:

Tire Type Price Range
Basic Wire Bead $25 – $40
Folding Bead $40 – $70
Tubeless Ready $50 – $90+

Basic wire bead tires are heavier and stiffer. Good for tight budgets or getting started.

Folding bead tires save weight and are easier to stash as spares. If you ride a lot, they’re worth a look.

Tubeless-ready tires cost more up front, but we get fewer flats and more pressure options for tricky terrain.

Don’t forget to budget for tubes, sealant (if tubeless), and maybe rim tape. The little stuff adds up.

If we ride year-round on mixed ground, investing in a tougher tire now might save us from buying two or three cheap ones later. And hey, keep an eye out for deals—last season’s best tire might be half price.

Frequently Asked Questions

Close-up of a gravel bike tire on a mixed clay and sandy terrain path with natural surroundings.

Picking gravel tires for clay and sand isn’t just about flashy tread. We’ve got to think about traction, comfort, speed, and flat resistance—otherwise, the terrain can leave us stranded.

What factors should we consider when picking tires for a gravel bike riding on mixed clay and sandy surfaces?

We’re after tires that adapt to sudden changes in grip. So, tread design, width, rubber, and puncture resistance all matter.

A wider tire floats better in sand, but still needs bite for slick clay.

How do tread patterns affect gravel bike performance in challenging terrains like clay and sand?

Tread really makes the difference. Chunky side knobs dig in for mud and sand, while a smoother center keeps things rolling.

Too much tread? You’ll drag on hardpack. Too little? You’ll slide all over.

Are there specific tire brands that excel in providing traction for both sandy and clay-based gravel trails?

A few brands come up again and again: Panaracer, WTB, and Teravail have solid mixed-terrain options. Their tread grips clay but doesn’t bog down in sand.

Maxxis and Schwalbe also make some great gravel tires—lots of fans swear by them for these conditions.

For mixed terrain rides, how important is tire width and volume in providing stability and comfort?

Wider is usually better—38–45mm is a sweet spot for most folks. More volume means lower pressure, which keeps us from bouncing or sinking, and just feels nicer on long rides.

Can you suggest any gravel bike tires that strike a balance between puncture resistance and rolling efficiency?

We’ve had good luck with Panaracer GravelKing SK, WTB Riddler, and Teravail Rutland. They balance flat protection with decent speed.

WTB Nano is another one to check out if you want to avoid flats but still move fast.

What's the secret sauce in finding a tire that's both speedy on pavement but a champ in the sandy grit?

Honestly, it's always a bit of a balancing act. You want a semi-slick center tread for rolling fast on pavement, but those chunkier side knobs? They dig in when things get loose or sandy.

Tires like the Specialized Pathfinder Pro or Continental Terra Speed really nail that mix. You get plenty of zip on the road, yet they don't flinch when you hit a gritty patch.
